| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 3399-6626Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 2216907 |
| Product Range | 3000 Series |
| Also Known As | 7100251655 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | RM30.550 |
| 10+ | RM26.400 |
| 100+ | RM22.630 |
| 250+ | RM17.820 |
| 500+ | RM13.010 |
| 1000+ | RM12.750 |
Product Information
| Manufacturer | 3M |
|---|---|
| Manufacturer Part No | 3399-6626Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 2216907 |
| Product Range | 3000 Series |
| Also Known As | 7100251655 |
| Technical Datasheet | |
| IDC Connector Type | IDC Receptacle |
| Contact Gender | Female |
| Pitch Spacing | 2.54mm |
| No. of Rows | 2 Row |
| No. of Contacts | 26Contacts |
| Connector Mounting | Cable Mount |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Plated Contacts |
| Product Range | 3000 Series |
| SVHC | No SVHC (16-Jul-2019) |
Product Overview

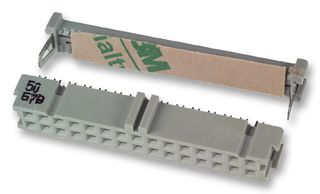

The 3399-6626 is a 26-way 2-row 0.100 x 0.100-inch Wire-to-board Socket for 0.050-inch pitch cable with gold-plated copper contacts. This 3000 series socket comes with glass filled polyester (PBT) insulation and accommodates 28/26AWG solid and stranded wire. It has open end cover (for daisy chaining or bussing), military polarization with centerbump and 26-contacts for plastic strain relief. The wire mount socket mates with 3M headers, plugs and pin strips for quick connect/disconnect capability. Transfer adhesive on covers provides precision alignment between connector and cables resulting in high yield terminations.
- Grey color
- Industry standard IDC socket
- Positive locking metal "J" clips provide high cover retention
- Accepts flat cable or discrete wire
- UL94V-0 Flammability rating
- 1A Current rating
- <gt/>1 x 10⁹Ω at 500VDC Insulation resistance
Applications
Industrial
Technical Specifications
| IDC Connector Type | IDC Receptacle |
|---|---|
| Pitch Spacing | 2.54mm |
| No. of Contacts | 26Contacts |
| Contact Material | Copper Alloy |
| Product Range | 3000 Series |
| Contact Gender | Female |
|---|---|
| No. of Rows | 2 Row |
| Connector Mounting | Cable Mount |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (16-Jul-2019) |
Technical Docs (3)
Alternatives for 3399-6626
3 Products Found
Associated Products
7 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Vietnam Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (16-Jul-2019) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .004581 |
