PIXXILCD-39P4-CTP

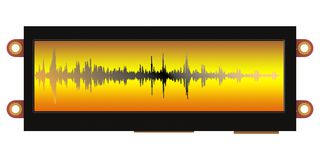

HMI Panel, LCD TFT Display, 475 cd/m2, 480 x 128 Pixels, 15 Way FPC

4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
4D SYSTEMS PIXXILCD-39P4-CTP
×
×

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
PIXXILCD-39P4-CTP
Order Code:
3534723
Product Range
Pixxi Series
See all Technical Docs

Product Range Selector (Pixxi Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
TFT LCD

:
118.8mm x 40.64mm

:
480 x 128 Pixels

:
3.9"

:
4V

:
5.5V

:
-10°C

:
60°C

:
Pixxi Series

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

CAD Downloads

×

Terms and Conditions

CAD Models - Notice
CAD Models and drawings are provided to you on a revocable limited licence for your internal use only but remain the property of the manufacturer who retain all intellectual property rights and ownership. They are provided to assist you in decision making and as design guide but are not guaranteed to be error free, accurate or up to date and is not intended to be taken as advice.
Use of these CAD models and other options provided are downloaded and used entirely at your own risk and by continuing you confirm acceptance of the above.

Accept Cancel

Product Overview

The pixxiLCD-39 is part of the new and revolutionary pixxiLCD series of embedded graphics displays. Developed with low total cost of ownership in mind, this 3.9" landscape colour TFT-LCD compact Intelligent Display module offers an array of functionality and options for any designer, integrator or user wishing to add a full colour HMI into an application. The 3.9" landscape display is IPS with wide viewing angles. The pixxiLCD-39 is powered by the configurable PIXXI-44 graphics processor allowing various functionalities such as touch detection, microSD or serial flash memory storage, GPIO and ADC, along with multiple millisecond resolution timers, and UART and I2C communication. The pixxiLCD embedded graphics displays feature a standard 15-way, 0.5mm pitch ZIF socket interface which carries the UART, I/O, I2C, power, and reset signals to/from the display.
  • 3.9", 480x128 pixel, intelligent display module with embedded PIXXI-44 processor
  • IPS display with wide viewing angles, capacitive touch, RGB 65K TFT screen
  • Suitable for fast and easy integration of a full colour HMI into any application or product
  • 32KB of flash memory for user application code, 30KB of SRAM for user variables
  • 2 general purpose I/O pins for user interfacing, 2 are configurable as analogue inputs or as I2C
  • Master I2C port (maximum supported speed is fast I2C) for user application devices
  • PCB is UL 94V-0 flammability rated, single 5.0V supply (4.0V to 5.5V range)
  • Dimension is 118.80 x 40.64 x 8.00mm, weight I 50grams
  • Display full-colour images, animations, icons, and video clips
  • Supports all available Windows fonts

Contents

pixxiLCD-39P4-CTP smart display module, gen4-IB interface board, 15-to-30 way FFC cable.
