CP2-10B-20
SWITCH, PUSHBUTTON, MAINTAINED, BLACK

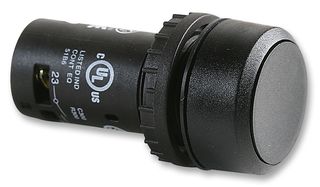

Image is for illustrative purposes only. Please refer to product description.
ManufacturerABB
Manufacturer Part NoCP2-10B-20
Order Code8641374
Product RangeCP2 Series
Also Known AsGTIN UPC EAN: 7320500241882
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerABB
Manufacturer Part NoCP2-10B-20
Order Code8641374
Product RangeCP2 Series
Also Known AsGTIN UPC EAN: 7320500241882
Technical Datasheet
Product RangeCP2 Series
Panel Cutout Diameter22.3mm
Contact ConfigurationDPST-NO
Switch OperationMaintained
Pushbutton Actuator StyleFlush
Actuator / Cap ColourBlack
Contact Current AC Max1.5A
Contact Voltage VAC127V
Contact Current DC Max300mA
Contact Voltage VDC24V
IP RatingIP69K
Switch MountingPanel Mount
Switch TerminalsScrew
Illumination ColourNon Illuminated
Panel Cutout (H x W)-
Technical Specifications
Product Range
CP2 Series
Contact Configuration
DPST-NO
Pushbutton Actuator Style
Flush
Contact Current AC Max
1.5A
Contact Current DC Max
300mA
IP Rating
IP69K
Switch Terminals
Screw
Panel Cutout (H x W)
-
Panel Cutout Diameter
22.3mm
Switch Operation
Maintained
Actuator / Cap Colour
Black
Contact Voltage VAC
127V
Contact Voltage VDC
24V
Switch Mounting
Panel Mount
Illumination Colour
Non Illuminated
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Sweden
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Sweden
Country in which last significant manufacturing process was carried out
Tariff No:85365007
RoHS Compliant:To be advised
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.022
