ABM3B-12.000MHZ-B2-T
Crystal, ABM3B, 12 MHz, 20 ppm, 50 ppm, 18 pF
23,971 In Stock
Need more?
21,960 Delivery in 3-4 Business Days(UK stock)
2,011 Delivery in 4-5 Business Days(US stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | RM3.260 | RM3.26 |
| Total Price | RM3.26 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | RM3.260 |
| 10+ | RM2.840 |
| 50+ | RM2.720 |
| 200+ | RM2.670 |
| 500+ | RM2.620 |
Full Reel
| Quantity | Price |
|---|---|
| 1000+ | RM2.120 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ABRACON |
|---|---|
| Manufacturer Part No | ABM3B-12.000MHZ-B2-TCopy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | Full Reel3819962 Re-Reel1611810RL Cut Tape1611810 |
| Product Range | ABM3B |
| Technical Datasheet | |
| Frequency Nom | 12MHz |
| Product Range | ABM3B |
| Crystal Frequency | 12MHz |
| Frequency Tolerance + / - | 20ppm |
| Frequency Stability + / - | 50ppm |
| Load Capacitance | 18pF |
| Crystal Case / Package | SMD, 5mm x 3.2mm |
| No. of Pins | 4Pins |
| Crystal Mounting | SMD |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

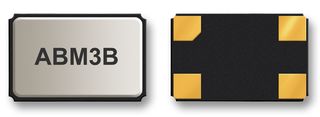

The ABM3B-12.000MHZ-B2-T is a 5.0 x 3.2 x 1.1mm Ceramic SMD Crystal Oscillator.
- Fundamental Mode
- Tight Stability
- Suitable for Reflow
- Ceramic Package and Metal Lid Assures High Precision and Reliability
- Seam Sealing
- Ageing ±5ppm Per Year Max
- 500MΩ Insulation Resistance
Applications
Communications & Networking, Consumer Electronics, Wireless, Industrial
Technical Specifications
| Frequency Nom | 12MHz |
|---|---|
| Crystal Frequency | 12MHz |
| Frequency Stability + / - | 50ppm |
| Crystal Case / Package | SMD, 5mm x 3.2mm |
| Crystal Mounting | SMD |
| Operating Temperature Max | 70°C |
| Product Range | ABM3B |
|---|---|
| Frequency Tolerance + / - | 20ppm |
| Load Capacitance | 18pF |
| No. of Pins | 4Pins |
| Operating Temperature Min | -20°C |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (2)
Alternatives for ABM3B-12.000MHZ-B2-T
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85416000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00015 |
