ABMM2-8.000MHZ-E2-T
Crystal, ABMM2, 8 MHz, 20 ppm, 20 ppm, 18 pF
62,778 In Stock
Need more?
2,627 Delivery in 1-2 Business Days(SG stock)
47,307 Delivery in 3-4 Business Days(UK stock)
12,844 Delivery in 4-5 Business Days(US stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | RM5.250 | RM5.25 |
| Total Price | RM5.25 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | RM5.250 |
| 10+ | RM4.580 |
| 50+ | RM4.140 |
| 200+ | RM3.590 |
| 500+ | RM3.240 |
| 1000+ | RM3.080 |
| 2500+ | RM2.920 |
Full Reel
| Quantity | Price |
|---|---|
| 1000+ | RM3.420 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ABRACON |
|---|---|
| Manufacturer Part No | ABMM2-8.000MHZ-E2-TCopy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | Full Reel3573147 Re-Reel1611803RL Cut Tape1611803 |
| Product Range | ABMM2 |
| Technical Datasheet | |
| Product Range | ABMM2 |
| Frequency Nom | 8MHz |
| Crystal Frequency | 8MHz |
| Frequency Tolerance + / - | 20ppm |
| Frequency Stability + / - | 20ppm |
| Load Capacitance | 18pF |
| Crystal Case / Package | SMD, 6mm x 3.6mm |
| No. of Pins | 4Pins |
| Crystal Mounting | SMD |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

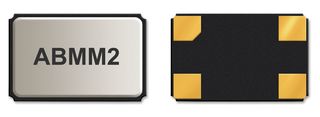

The ABMM2-8.000MHZ-E2-T is a 6.0 x 3.6 x 1.2mm Ceramic Surface Mount Low Profile Quartz Crystal Oscillator.
- Low Height 1.2mm Max
- Suitable for RoHS Compliant Reflow
- Seam Sealed Ceramic Package Assures High Reliability
- Tight Tolerance and Stability
- Ageing ±2ppm Per Year Max
- 500MΩ Insulation Resistance
Applications
Communications & Networking, Test & Measurement, Consumer Electronics, Wireless
Technical Specifications
| Product Range | ABMM2 |
|---|---|
| Crystal Frequency | 8MHz |
| Frequency Stability + / - | 20ppm |
| Crystal Case / Package | SMD, 6mm x 3.6mm |
| Crystal Mounting | SMD |
| Operating Temperature Max | 70°C |
| Frequency Nom | 8MHz |
|---|---|
| Frequency Tolerance + / - | 20ppm |
| Load Capacitance | 18pF |
| No. of Pins | 4Pins |
| Operating Temperature Min | -20°C |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (2)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85416000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000192 |
