320559

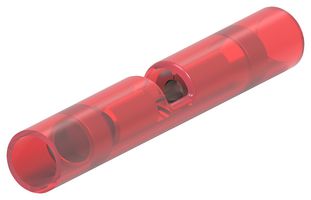

Butt Splice, Red, PIDG, 22 AWG, 16 AWG, 1.65 mm², Nylon (Polyamide)
Image is for illustrative purposes only. Please refer to product description.
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No320559
Order Code586924
Product RangePIDG
Your Part Number
Technical Datasheet
10,018 In Stock
Need more?
2247 Delivery in 1-2 Business Days(SG stock)
7771 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM5.090 |
| 10+ | RM4.360 |
| 100+ | RM3.760 |
| 500+ | RM3.390 |
| 1000+ | RM3.240 |
| 2500+ | RM3.150 |
Price for:Each
Minimum: 1
Multiple: 1
RM5.09
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerAMP - TE CONNECTIVITY
Manufacturer Part No320559
Order Code586924
Product RangePIDG
Technical Datasheet
Insulator ColourRed
Product RangePIDG
Wire Size AWG Min22AWG
Wire Size AWG Max16AWG
Conductor Area CSA1.65mm²
Insulator MaterialNylon (Polyamide)
SVHCNo SVHC (25-Jun-2025)
Product Overview
The 320559 is a red serrated insulated Butt Splice with of tin-plated copper contact. The splice has nylon insulation and accepts 22 to 16AWG wire size.
- 600V Maximum operating voltage
- 105°C Maximum operating temperature
Technical Specifications
Insulator Colour
Red
Wire Size AWG Min
22AWG
Conductor Area CSA
1.65mm²
SVHC
No SVHC (25-Jun-2025)
Product Range
PIDG
Wire Size AWG Max
16AWG
Insulator Material
Nylon (Polyamide)
Alternatives for 320559
5 Products Found
Associated Products
8 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.002
