| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 84952-6Copy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | Full Reel2399741 Cut Tape1245268 |
| Product Range | 84952 |
| Your Part Number | |
| Technical Datasheet |
453 In Stock
1,500 more incoming. You can reserve stock now
453 Delivery in 3-4 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | RM6.150 | RM6.15 |
| Total Price | RM6.15 | ||
Cut Tape
| Quantity | Price |
|---|---|
| 1+ | RM6.150 |
| 37+ | RM4.970 |
| 112+ | RM4.530 |
| 300+ | RM4.260 |
| 750+ | RM4.080 |
Full Reel
| Quantity | Price |
|---|---|
| 1500+ | RM3.870 |
| 4500+ | RM3.610 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | TE CONNECTIVITY - AMP |
|---|---|
| Manufacturer Part No | 84952-6Copy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | Full Reel2399741 Cut Tape1245268 |
| Product Range | 84952 |
| Technical Datasheet | |
| Pitch Spacing | 1mm |
| No. of Contacts | 6Contacts |
| Gender | Receptacle(View Associated Connectors) |
| Product Range | 84952 |
| Contact Termination Type | Surface Mount |
| Contact Position | Bottom |
| No. of Rows | 1 Row |
| Contact Plating | Tin Plated Contacts |
| Contact Material | Phosphor Bronze |
| FFC / FPC Thickness | 0.3mm |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

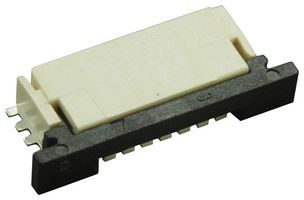

The 84952-6 is a 6-position 1-row ZIF right angle shrouded Flex-to-Board FPC Connector with 2µm tin-plated phosphor bronze single beam contacts and UL94V-O glass reinforced polyester (LCP) housing. The FPC series receptacle with stuffer actuator and surface-mount termination method to PC board.
- Inline tail orientation
- With PCB mount retention and mating alignment
Applications
Computers & Computer Peripherals, Industrial
Technical Specifications
| Pitch Spacing | 1mm |
|---|---|
| Gender | Receptacle |
| Contact Termination Type | Surface Mount |
| No. of Rows | 1 Row |
| Contact Material | Phosphor Bronze |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Contacts | 6Contacts |
|---|---|
| Product Range | 84952 |
| Contact Position | Bottom |
| Contact Plating | Tin Plated Contacts |
| FFC / FPC Thickness | 0.3mm |
Alternatives for 84952-6
2 Products Found
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000409 |
