ME1005634478101
Card Edge Connector, Dual Side, PCI Express Gen 5, 1.57 mm, 56 Contacts, Surface Mount, Straight

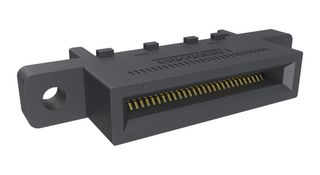

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS |
|---|---|
| Manufacturer Part No | ME1005634478101Copy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 4626878 |
| Product Range | Mini Cool Edge 0.60mm Series |
| Your Part Number | |
| Technical Datasheet |
780 In Stock
Need more?
780 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM25.140 |
| 10+ | RM21.600 |
| 100+ | RM18.600 |
| 250+ | RM17.550 |
| 500+ | RM16.940 |
| 1000+ | RM16.810 |
Price for:Each
Minimum: 1
Multiple: 1
RM25.14
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS |
|---|---|
| Manufacturer Part No | ME1005634478101Copy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | 4626878 |
| Product Range | Mini Cool Edge 0.60mm Series |
| Technical Datasheet | |
| Card Edge Connector Type | Dual Side |
| Card Type | PCI Express Gen 5 |
| Card Thickness | 1.57mm |
| No. of Contacts | 56 Contacts |
| Connector Mounting | Surface Mount |
| Connector Body Orientation | Straight |
| Contact Termination Type | Solder |
| Contact Material | Copper Alloy |
| Contact Plating - Mating Side | 1.27µm Gold Plated Contacts |
| Connector Body Material | Thermoplastic Body |
| Product Range | Mini Cool Edge 0.60mm Series |
| SVHC | No SVHC (21-Jan-2025) |
Technical Specifications
| Card Edge Connector Type | Dual Side |
|---|---|
| Card Thickness | 1.57mm |
| Connector Mounting | Surface Mount |
| Contact Termination Type | Solder |
| Contact Plating - Mating Side | 1.27µm Gold Plated Contacts |
| Product Range | Mini Cool Edge 0.60mm Series |
| Card Type | PCI Express Gen 5 |
|---|---|
| No. of Contacts | 56 Contacts |
| Connector Body Orientation | Straight |
| Contact Material | Copper Alloy |
| Connector Body Material | Thermoplastic Body |
| SVHC | No SVHC (21-Jan-2025) |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000001 |
