135110-02-06.00
RF / Coaxial Cable Assembly, 6 ", 152.4 mm, RG174/U, SMA Bulkhead Jack, SMA Plug, 50ohm, 50 ohm
| Manufacturer | AMPHENOL RF |
|---|---|
| Manufacturer Part No | 135110-02-06.00Copy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 2144513 |
| Product Range | 135 Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | RM118.140 |
| 10+ | RM104.830 |
Product Information
| Manufacturer | AMPHENOL RF |
|---|---|
| Manufacturer Part No | 135110-02-06.00Copy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 2144513 |
| Product Range | 135 Series |
| Technical Datasheet | |
| Cable Length - Imperial | 6" |
| Connector to Connector | SMA Plug to SMA Bulkhead Jack |
| Cable Length - Metric | 152.4mm |
| Coaxial Cable Type | RG174/U |
| Connector Type A | SMA Bulkhead Jack |
| Connector Type B | SMA Plug, 50ohm |
| Impedance | 50ohm |
| Jacket Colour | Black |
| Product Range | 135 Series |
| SVHC | Lead (04-Feb-2026) |
Product Overview

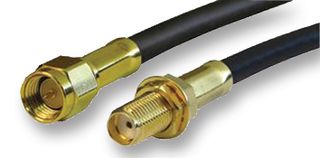

The 135110-02-06.00 is a 6-inch RG-174/U Coaxial Cable, SMA bulkhead female to SMA straight male connectors. Available with most commercially available RF connector series mounted to popular flexible cables as well as semi-rigid conformable (hand formable) cable. SMA connectors are semi-precision, sub-miniature, high-frequency connectors that offer reliable broadband performance. SMA assemblies on semi-rigid cable are DC to 18GHz and assemblies using flexible cable perform up to 12.4GHz (this varies by cable type). SMA connectors feature a thread-on interface that offers high mechanical strength, high durability and low VSWR. Conformable/semi rigid assemblies have no heat shrink tubing.
- 50Ω Nominal impedance
- Low VSWR SMA connector
- Semi-rigid assemblies
Applications
RF Communications, Commercial, Industrial
Technical Specifications
| Cable Length - Imperial | 6" |
|---|---|
| Cable Length - Metric | 152.4mm |
| Connector Type A | SMA Bulkhead Jack |
| Impedance | 50ohm |
| Product Range | 135 Series |
| Connector to Connector | SMA Plug to SMA Bulkhead Jack |
|---|---|
| Coaxial Cable Type | RG174/U |
| Connector Type B | SMA Plug, 50ohm |
| Jacket Colour | Black |
| SVHC | Lead (04-Feb-2026) |
Technical Docs (1)
Associated Products
8 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Mexico Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85442000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .012428 |
