62684-401100ALF
FFC / FPC Board Connector, 0.5 mm, 40 Contacts, Receptacle, FCI OPU, Surface Mount, Bottom

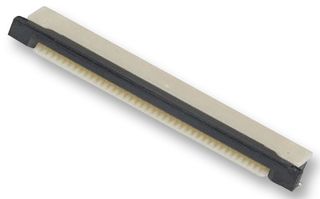

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS |
|---|---|
| Manufacturer Part No | 62684-401100ALFCopy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 2135964 |
| Product Range | FCI OPU |
| Your Part Number | |
| Technical Datasheet |
3,573 In Stock
Need more?
3,573 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 10+ | RM4.210 |
| 100+ | RM3.600 |
| 250+ | RM3.380 |
| 500+ | RM3.230 |
| 1000+ | RM3.090 |
| 2500+ | RM3.030 |
Price for:Each (Supplied on Cut Tape)
Minimum: 10
Multiple: 10
RM42.10
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS |
|---|---|
| Manufacturer Part No | 62684-401100ALFCopy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 2135964 |
| Product Range | FCI OPU |
| Technical Datasheet | |
| Pitch Spacing | 0.5mm |
| No. of Contacts | 40Contacts |
| Gender | Receptacle(View Associated Connectors) |
| Product Range | FCI OPU |
| Contact Termination Type | Surface Mount |
| Contact Position | Bottom |
| No. of Rows | 1 Row |
| Contact Plating | Gold Plated Contacts |
| Contact Material | Phosphor Bronze |
| FFC / FPC Thickness | 0.3mm |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
The 62684-401100ALF is a FFC/FPC Connector features lower side contact and right angle orientation. The 62684-401100ALF has UL94V-0 glass reinforced black slider and gold flash plated phosphor bronze contact.
- Glass-filled Thermoplastic (UL94V-0) Housing and Slider
- Gold over Nickel-plated Phosphor Bronze Contact
- 0.5A AC/DC Current Rating
- 50VAC/DC Voltage Rating
- 100MΩ Minimum Insulation Resistance
- 30mΩ Maximum Contact Resistance
Applications
Computers & Computer Peripherals
Technical Specifications
| Pitch Spacing | 0.5mm |
|---|---|
| Gender | Receptacle |
| Contact Termination Type | Surface Mount |
| No. of Rows | 1 Row |
| Contact Material | Phosphor Bronze |
| SVHC | No SVHC (21-Jan-2025) |
| No. of Contacts | 40Contacts |
|---|---|
| Product Range | FCI OPU |
| Contact Position | Bottom |
| Contact Plating | Gold Plated Contacts |
| FFC / FPC Thickness | 0.3mm |
Alternatives for 62684-401100ALF
8 Products Found
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Malaysia Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000823 |
