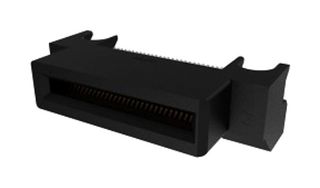

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS |
|---|---|
| Manufacturer Part No | ME10056334B1A01Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 3765448 |
| Product Range | Mini CE |
| Your Part Number | |
| Technical Datasheet |
248 In Stock
Need more?
248 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM24.730 |
| 10+ | RM21.270 |
| 100+ | RM18.430 |
Price for:Each
Minimum: 1
Multiple: 1
RM24.73
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS |
|---|---|
| Manufacturer Part No | ME10056334B1A01Copy |
| Manufacturer Standard Lead Time | 15 weeks |
| Order Code | 3765448 |
| Product Range | Mini CE |
| Technical Datasheet | |
| Card Edge Connector Type | Dual Side |
| Card Thickness | 1.57mm |
| No. of Contacts | 56 Contacts |
| Connector Mounting | Straddle Mount |
| Connector Body Orientation | Straight |
| Contact Termination Type | Solder |
| Contact Material | Copper Alloy |
| Contact Plating - Mating Side | 0.76µm Gold Plated Contacts |
| Connector Body Material | Thermoplastic Body |
| Product Range | Mini CE |
| SVHC | No SVHC (12-Jan-2017) |
Technical Specifications
| Card Edge Connector Type | Dual Side |
|---|---|
| No. of Contacts | 56 Contacts |
| Connector Body Orientation | Straight |
| Contact Material | Copper Alloy |
| Connector Body Material | Thermoplastic Body |
| SVHC | No SVHC (12-Jan-2017) |
| Card Thickness | 1.57mm |
|---|---|
| Connector Mounting | Straddle Mount |
| Contact Termination Type | Solder |
| Contact Plating - Mating Side | 0.76µm Gold Plated Contacts |
| Product Range | Mini CE |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (12-Jan-2017) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .005547 |
