MS3116F8-3P

Circular Connector, MIL-DTL-26482 Series I, Straight Plug, 3 Contacts, Solder Pin, Bayonet, 8-3

AMPHENOL INDUSTRIAL MS3116F8-3P
AMPHENOL INDUSTRIAL MS3116F8-3P

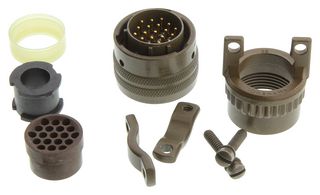

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
MS3116F8-3P
Order Code:
2334432
Product Range
MIL-DTL-26482 Series I
Also Known As:
71-266608-03P
Technical Datasheet:
MS3116F8-3P   Datasheet
See all Technical Docs

Product Range Selector (MIL-DTL-26482 Series I)

See all from this product range

Product Overview

The MS3116F8-3P is a 3-position military standard Straight Plug with pin type gold-plated copper alloy contacts and 8-3 insert arrangement. The solder contact miniature cylindrical connector meets the most critical application needs. Design versatility combined with high reliability performance makes these series of miniature cylindrical connector ideal for environmental sealing or pressurized applications. A corrosion-resistant electrically conductive finish of cadmium plate with an olive drab chromate after-treatment. Shell components for these series are aluminum. The dependable 5-key/keyway polarization with bayonet lock coupling assures positive mating with no chance of cross plugging. Spring tension provided by a wave washer in the coupling nut ensures maintenance of interfacial seal between mating halves.
  • Environmental resisting connector with strain relief
  • Resilient inserts which provide high dielectric strength and moisture barrier
  • Both insert and main joint gasket are molded from resilient neoprene

Applications

Aerospace, Defence, Military, Sensing & Instrumentation, System Monitoring, Automation & Process Control, Communications & Networking, Industrial, Robotics, Mining, Oil & Gas, Logistics

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
MIL-DTL-26482 Series I

:
Straight Plug

:
3Contacts

:
Solder Pin

:
Bayonet

:
8-3

:
Aluminium Alloy Body

:
Olive Drab Chromate over Cadmium

:
Copper Alloy

:
Gold

:
N

:
Environmentally Sealed

:
MIL-DTL-26482 Series I

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (2)

Also Known As

71-266608-03P
