C016 20H003 100 12
Circular Connector, Standard Circular Connector, ecomate M Series, Cable Mount Plug, 4 Contacts

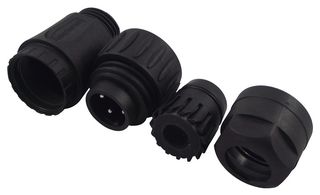

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | AMPHENOL SINE/TUCHEL |
|---|---|
| Manufacturer Part No | C016 20H003 100 12Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1704268 |
| Product Range | ecomate M Series |
| Your Part Number | |
| Technical Datasheet |
1,318 In Stock
Need more?
48 Delivery in 1-2 Business Days(SG stock)
1,270 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM59.390 |
| 10+ | RM51.010 |
| 25+ | RM48.040 |
| 100+ | RM43.890 |
| 250+ | RM41.360 |
| 500+ | RM39.570 |
Price for:Each
Minimum: 1
Multiple: 1
RM59.39
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | AMPHENOL SINE/TUCHEL |
|---|---|
| Manufacturer Part No | C016 20H003 100 12Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1704268 |
| Product Range | ecomate M Series |
| Technical Datasheet | |
| Connector Type | Standard Circular Connector |
| Product Range | ecomate M Series |
| Circular Connector Shell Style | Cable Mount Plug |
| No. of Contacts | 4Contacts |
| Circular Connector Contact Type | Screw Pin |
| Coupling Style | Threaded |
| Connector Body Material | Nylon (Polyamide) Body |
| Connector Body Plating | - |
| Contact Material | - |
| Contact Plating | Silver |
| IP Rating | IP65 |
Product Overview
The C016 20H003 100 12 is a 3 + PE-position male straight Cable Connector, C016 series, silver-plated contacts and black backshell, 0.75 to 2.5mm² wire gauge. In design and conception the Ecomate program meets the high requirements for applications in industrial technology. The series is comprised of a large selection of housings and shapes and offers models with screw termination.
- Quick and easy to assemble
- Ergonomically designed product range for safe handling
- Housing components made from premium moulding material
- ≥10⁸Ω Insulation resistance
- ≤5mΩ Contact resistance
- Protection class IP65/67 in mated condition in accordance with DIN EN 60526
Applications
Power Management, Test & Measurement
Technical Specifications
| Connector Type | Standard Circular Connector |
|---|---|
| Circular Connector Shell Style | Cable Mount Plug |
| Circular Connector Contact Type | Screw Pin |
| Connector Body Material | Nylon (Polyamide) Body |
| Contact Material | - |
| IP Rating | IP65 |
| Product Range | ecomate M Series |
|---|---|
| No. of Contacts | 4Contacts |
| Coupling Style | Threaded |
| Connector Body Plating | - |
| Contact Plating | Silver |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Czech Republic Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .038556 |
