T821120A1S100CEU
Pin Header, Wire-to-Board, 2.54 mm, 2 Rows, 20 Contacts, Through Hole Straight, T821

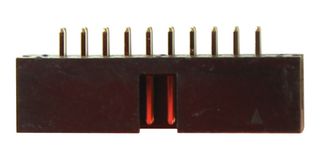

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS |
|---|---|
| Manufacturer Part No | T821120A1S100CEUCopy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 2215309 |
| Your Part Number | |
| Technical Datasheet |
25,565 In Stock
Need more?
19,696 Delivery in 1-2 Business Days(SG stock)
5,869 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 10+ | RM3.250 |
| 100+ | RM3.220 |
| 500+ | RM3.160 |
| 1000+ | RM2.790 |
| 2500+ | RM2.730 |
| 5000+ | RM2.680 |
Price for:Each
Minimum: 10
Multiple: 10
RM32.50
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS |
|---|---|
| Manufacturer Part No | T821120A1S100CEUCopy |
| Manufacturer Standard Lead Time | 10 weeks |
| Order Code | 2215309 |
| Technical Datasheet | |
| Connector Systems | Wire-to-Board |
| Pitch Spacing | 2.54mm |
| No. of Rows | 2Rows |
| No. of Contacts | 20Contacts |
| Connector Shroud | Shrouded |
| Connector Type | PCB Header |
| SVHC | No SVHC (17-Dec-2014) |
Product Overview
The T821120A1S100CEU is a 20-way straight Box Header without latch. This box header has phosphor bronze contact and glass-reinforced thermoplastic insulator.
- 2.54mm pitch
- Black Colour
- STD (Non-latch) Type
- STD, PBT, 3.0mm Pin Tail
- UL94V-0 Flame-rated Glass-reinforce Thermoplastic/PBT Insulator
- 1000MΩ Insulation Resistance
- 250VAC/RMS at 60Hz Voltage
Applications
Industrial
Technical Specifications
| Connector Systems | Wire-to-Board |
|---|---|
| No. of Rows | 2Rows |
| Connector Shroud | Shrouded |
| SVHC | No SVHC (17-Dec-2014) |
| Pitch Spacing | 2.54mm |
|---|---|
| No. of Contacts | 20Contacts |
| Connector Type | PCB Header |
Technical Docs (1)
Alternatives for T821120A1S100CEU
5 Products Found
Associated Products
8 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (17-Dec-2014) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .002676 |
