| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | DC1789ACopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4032984 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | RM510.330 |
Product Information
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | DC1789ACopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4032984 |
| Technical Datasheet | |
| Kit Application Type | Interface |
| Application Sub Type | USB Transceiver |
| Silicon Manufacturer | Analog Devices |
| Silicon Core Number | LTM2884CY#PBF |
| Product Range | - |
| Kit Contents | Demonstration Board LTM2884CY#PBF |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

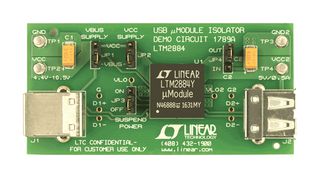

DC1789A is a LTM2884 isolated USB transceiver with isolated power demonstration board. Demonstration circuit 1789A is an isolated USB transceiver with isolated power featuring the LTM®2884. The demo circuit features an EMI optimized circuit configuration and printed circuit board layout. All components are integrated into the µModule® isolator. The demo circuit operates from a supply on VCC and/or VBUS. The part generates an isolated output voltage on VCC2 and communicates all necessary signalling across the isolation barrier through LTC’s isolator µModule technology.
- Operating supply range (isolated power input) 4.4V to 16.5V at TA = 25°C
- Operating supply range (USB Bus power input) 4.4V to 16.5V at TA = 25°C
- Low speed data rate is 1.5MBps
- Full speed data rate is 12Mbps
- Common mode transient immunity is 30KV/µs
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Technical Specifications
| Kit Application Type | Interface |
|---|---|
| Silicon Manufacturer | Analog Devices |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
| Application Sub Type | USB Transceiver |
|---|---|
| Silicon Core Number | LTM2884CY#PBF |
| Kit Contents | Demonstration Board LTM2884CY#PBF |
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000001 |
