| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | DC590BCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4032994 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | RM399.880 |
Product Information
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | DC590BCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4032994 |
| Technical Datasheet | |
| Kit Application Type | Interface |
| Application Sub Type | USB Serial Controller |
| Silicon Manufacturer | Microchip |
| Silicon Core Number | PIC16LF877A-I/PT |
| Product Range | - |
| Kit Contents | Demonstration Board PIC16LF877A-I/PT |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

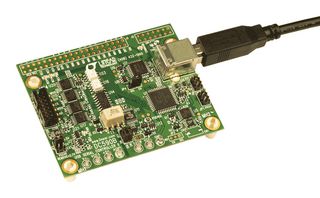

DC590B is a USB serial controller for linear technology QuikEval™ demonstration board. Demonstration circuit 590B is a USB-based controller with generic serial peripheral interface (SPI) and inter integrated circuit (I2C) ports. It is designed to mate with Linear Technology’s family of QuikEval™ demonstration board. The demo board is fully isolated from the host PC’s ground and in many cases no external power source is required. The evaluation software automatically detects which demo board is connected and loads the appropriate control screen. The QuikEval system provides a quick and easy way to evaluate the performance of a wide variety of Linear Technology’s products, including ADCs, DACs, SMBus power control products and many others.
- QuikEval system offers simple way to evaluate performance of ADC, DAC, SMBus power control products
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party.
Technical Specifications
| Kit Application Type | Interface |
|---|---|
| Silicon Manufacturer | Microchip |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
| Application Sub Type | USB Serial Controller |
|---|---|
| Silicon Core Number | PIC16LF877A-I/PT |
| Kit Contents | Demonstration Board PIC16LF877A-I/PT |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Philippines Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .101015 |
