EV-ISO-4224-FMCZ

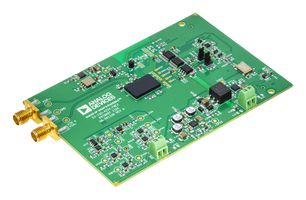

EV-ISO-4224-FMCZ is an isolated digital and power reference design for the ADAQ4224, a 24bit, 2MSPS μModule data acquisition solution. On the EV-ISO-4224-FMCZ, the electrically isolated temperature sensor of the ADAQ4224 is connected to the controller side and has a separate ground potential versus the data acquisition signal path ground. The EV-ISO-4224-FMCZ has the power management blocks to generate all the necessary supply rails and reference voltage for the operation of the ADAQ4224 μModule. Applications include instrumentation & measurement, automated test equipment, electronic, test & measurement, precision measurement.

• Single supply operation from +12V on the Zedboard FMC connector
• Digital isolation
• Power isolation
• On-board power blocks and reference sources

Contents

EV-ISO-4224-FMCZ reference design board, Micro-SD memory card (with adapter) containing system board boot software and Linux OS.
