EVAL-ADUM4160EBZ
Evaluation Board, ADuM4160BRWZ, USB Isolator, 3.3/5 V Supply
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | EVAL-ADUM4160EBZCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4033022 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | RM387.430 |
Product Information
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | EVAL-ADUM4160EBZCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4033022 |
| Technical Datasheet | |
| Kit Application Type | Interface |
| Application Sub Type | USB Port Isolator |
| Silicon Manufacturer | Analog Devices |
| Silicon Core Number | ADuM4160BRWZ |
| Product Range | - |
| Kit Contents | Evaluation Board ADuM4160BRWZ |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

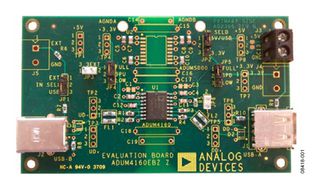

EVAL-ADUM4160EBZ is an iCoupler ADuM4160 USB isolator evaluation board. It allows for an easy interface to existing applications by standard cabling or discrete wiring. This USB evaluation board comes populated with an ADuM4160. The design goals of this evaluation platform are to Connect to systems through standard USB Type A and Type B connectors, draw power from the USB host or from an external 5V or 3.3V power supply, support external downstream power from a 5V or 3.3V power supply, Provide test points for all power and signal paths, support low and full speed communications, support enumeration control, support external electrostatic discharge (ESD) protection, support external electrostatic discharge (ESD) protection, support ferrite inductors in the VBUSx and GNDx lines.
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Technical Specifications
| Kit Application Type | Interface |
|---|---|
| Silicon Manufacturer | Analog Devices |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
| Application Sub Type | USB Port Isolator |
|---|---|
| Silicon Core Number | ADuM4160BRWZ |
| Kit Contents | Evaluation Board ADuM4160BRWZ |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Philippines Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000001 |
