EVAL-ADUM6421AURNZ
Evaluation Board, ADuM6420A, ADuM6421A, ADuM6422A, ADuM6423A, ADuM6424A, Isolator, Quad-Channel

| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | EVAL-ADUM6421AURNZCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4033025 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM346.150 |
Product Information
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | EVAL-ADUM6421AURNZCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4033025 |
| Technical Datasheet | |
| Kit Application Type | Interface |
| Application Sub Type | Isolator |
| Silicon Manufacturer | Analog Devices |
| Silicon Core Number | ADuM6420A, ADuM6421A, ADuM6422A, ADuM6423A, ADuM6424A |
| Product Range | - |
| Kit Contents | Evaluation Board ADuM6420A, ADuM6421A, ADuM6422A, ADuM6423A, ADuM6424A |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

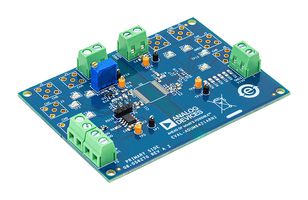

EVAL-ADUM6421AURNZ is an unpopulated evaluation board for ADuM6420A/ADuM6421A/ADuM6422A quad-channel isolator with integrated DC to DC converter. The ADuM6420A/ADuM6421A/ADuM6422A devices integrate four iCoupler® on-off keying (OOK) digital isolation channels and iCoupler chip scale isoPower® transformer technology. This iCoupler transformer technology enables a small form factor integrated, reinforced isolated signal and power solution in applications requiring up to 500mW of isolated power.
- isoPower integrated, isolated DC to DC converter
- Meets CISPR 32/EN 55032, Class B emission limits
- On-board 6V to 9V LDO power supply that provides 5V to the VDDP pin
- 5V input operation and selectable 3.3V or 5V isolated dc-to-dc converter output
- Screw terminal connectors for the following: LDO power supply, 5V direct power supply
- Screw terminal connectors for the following: off board PDIS control, isolated output supply
