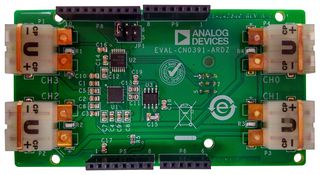

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | EVAL-CN0391-ARDZCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 4034169 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM416.440 |
Price for:Each
Minimum: 1
Multiple: 1
RM416.44
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | EVAL-CN0391-ARDZCopy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 4034169 |
| Technical Datasheet | |
| Silicon Manufacturer | Analog Devices |
| Silicon Core Number | AD7124-8, ADP7118 |
| Kit Application Type | Sensor |
| Application Sub Type | Precision Analogue Microcontroller Thermocouple Measurement |
| Core Architecture | - |
| Core Sub-Architecture | - |
| Silicon Family Name | - |
| Kit Contents | Arduino Shield Board CN0391 |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
EVAL-CN0391-ARDZ is an Arduino-shield compatible circuit evaluation board. The EVAL-CN0391-ARDZ shield is a single supply, multi channel thermocouple temperature meter. The CN0391 uses AD7124-8 8-channel, low noise, low power, 24bit, Sigma-Delta ADC with PGA and reference as integrated solution for multi channel thermocouple temperature measurement with RTD cold junction compensation.
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Technical Specifications
| Silicon Manufacturer | Analog Devices |
|---|---|
| Kit Application Type | Sensor |
| Core Architecture | - |
| Silicon Family Name | - |
| Product Range | - |
| Silicon Core Number | AD7124-8, ADP7118 |
|---|---|
| Application Sub Type | Precision Analogue Microcontroller Thermocouple Measurement |
| Core Sub-Architecture | - |
| Kit Contents | Arduino Shield Board CN0391 |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Philippines Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85423990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .162386 |
