LB2223B

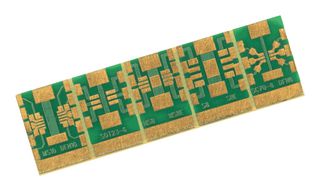

Multi footprint mini board LB2223B is designed to support prototyping with the packages such as MSOP-10, MSOP-8, MSOP-8E, SOIC-8, SOIC-8E, 3x3 DFN-10, 3x3 DFN-8, SOT-23-3, SOT-23-5, SOT-23-6 and SOT-23-8. Each of the pin landing pads is connected to an edge pad to simplify wiring surface mount packages into other circuits. Additionally a Centre trace with pads at each end (and a Centre pad on the two boards on the right) is included for use as a ground trace.

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
