MAX12931BWEVKIT#
Evaluation Kit, 2 Channel Digital Isolator, Unidirectional Channels in the Opposite Direction, SMA

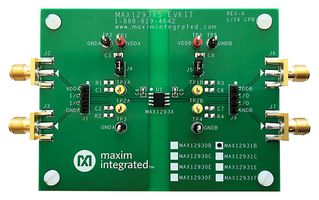

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | MAX12931BWEVKIT#Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 2627632 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 12 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM278.010 |
Price for:Each
Minimum: 1
Multiple: 1
RM278.01
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | MAX12931BWEVKIT#Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 2627632 |
| Technical Datasheet | |
| Kit Application Type | Interface |
| Application Sub Type | Digital Isolator |
| Silicon Manufacturer | Analog Devices |
| Silicon Core Number | MAX12931 |
| Product Range | - |
| Kit Contents | Eval Board MAX12931 |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
MAX12931BWEVKIT# is a MAX12931 evaluation kit (EV kit) that provides a proven design to evaluate the MAX12931 two-channel digital isolators.
- Supports MAX12931 wide-body isolator
- Broad range of data transfer rates (from DC to 150Mbps)
- Two unidirectional channels in the opposite direction (MAX12931)
- SMA connectors for easy connection to external equipment
- Wide power supply voltage range from 1.71V to 5.5V
- Guaranteed up to 5KVRMS isolation (for the wide-body SOIC Package) for 60s
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Technical Specifications
| Kit Application Type | Interface |
|---|---|
| Silicon Manufacturer | Analog Devices |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
| Application Sub Type | Digital Isolator |
|---|---|
| Silicon Core Number | MAX12931 |
| Kit Contents | Eval Board MAX12931 |
Technical Docs (3)
Associated Products
7 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Philippines Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .16 |
