MAX14727EVKIT#
Evaluation Board, Bidirectional Overvoltage Protector, Dual Channel, Automatic Path Control

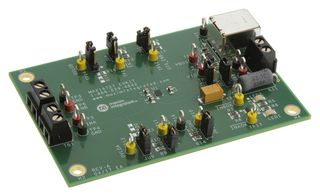

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | MAX14727EVKIT#Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 2837173 |
| Your Part Number | |
| Technical Datasheet |
1 In Stock
Need more?
1 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM401.870 |
Price for:Each
Minimum: 1
Multiple: 1
RM401.87
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | MAX14727EVKIT#Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 2837173 |
| Technical Datasheet | |
| Silicon Manufacturer | Analog Devices |
| Silicon Core Number | MAX14727EWV+ |
| Kit Application Type | Power Management |
| Application Sub Type | Overvoltage Protection |
| Kit Contents | Eval Board MAX14727 |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
The MAX14727EVKIT# is an evaluation kit (EV kit) for MAX14727. It is a fully assembled and tested circuit board that demonstrates the MAX14727 dual-input, bidirectional overvoltage protection with automatic path control device. The EV kit comes with the MAX14727EWV+ installed. The EV kit can also be used to evaluate the MAX14728/ MAX14731. Typical applications include e-readers, smartphones and tablets.
- 3V to 28V operating voltage range
- LEDs showing active-low INAOK, active-low INBOK
- Proven PCB layout
- Fully assembled and tested
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Technical Specifications
| Silicon Manufacturer | Analog Devices |
|---|---|
| Kit Application Type | Power Management |
| Kit Contents | Eval Board MAX14727 |
| SVHC | No SVHC (04-Feb-2026) |
| Silicon Core Number | MAX14727EWV+ |
|---|---|
| Application Sub Type | Overvoltage Protection |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Philippines Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .11612 |
