| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | MAX14890EEVKIT#Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 2528296 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | RM655.090 |
Product Information
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | MAX14890EEVKIT#Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 2528296 |
| Technical Datasheet | |
| Kit Application Type | Interface |
| Application Sub Type | Incremental Encoder |
| Silicon Manufacturer | Analog Devices |
| Silicon Core Number | MAX14890E |
| Product Range | - |
| Kit Contents | Eval Board MAX14890E |
| SVHC | Lead (04-Feb-2026) |
Product Overview

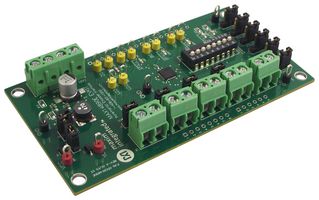

MAX14890EEVKIT# is a MAX14890E evaluation kit (EV kit). It is a fully assembled and tested PCB that contains the MAX14890E incremental encoder interface. The MAX14890E incremental encoder receiver contains four differential receivers and two single ended receivers for RS-422, HTL, TTL, and digital signals. Power for the transceiver can be provided from a single +5V source or from an on-board 24V to 5V step-down circuit. The MAX14890E EV kit includes terminal blocks for motor and power connections. On-board switches and jumpers are included to configure the MAX14890E in pin-control mode. The evaluation board is also designed with the Arduino® form-factor for easy software evaluation and development.
- Four configurable differential or single-ended receivers
- SPI or pin-controlled operation USB-PC connection
- Proven PCB layout
- Fully assembled and tested
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Technical Specifications
| Kit Application Type | Interface |
|---|---|
| Silicon Manufacturer | Analog Devices |
| Product Range | - |
| SVHC | Lead (04-Feb-2026) |
| Application Sub Type | Incremental Encoder |
|---|---|
| Silicon Core Number | MAX14890E |
| Kit Contents | Eval Board MAX14890E |
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Philippines Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .2 |
