| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | MAX22514EVKIT#Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 3934887 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | RM566.960 |
Product Information
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | MAX22514EVKIT#Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 3934887 |
| Technical Datasheet | |
| Kit Application Type | Interface |
| Application Sub Type | IO-Link Transceiver |
| Silicon Manufacturer | Analog Devices |
| Silicon Core Number | MAX22514 |
| Product Range | - |
| Kit Contents | Eval Kit MAX22514, USB A to Micro B Cable |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

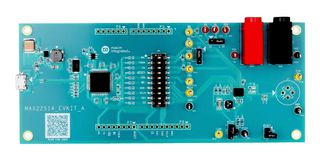

MAX22514EVKIT# is a MAX22514 evaluation kit (EV kit) that consists of the evaluation board and software. The EV kit is a fully assembled and tested circuit board that evaluates the MAX22514 IO-Link® device transceiver with integrated DC-DC buck regulator. The EV kit includes Windows®- compatible software that provides a graphical user interface (GUI) for exercising the features of the MAX22514. The EV kit is connected to a PC through a USB-A-to-micro-B cable.
- IO-Link-compliant device transceiver
- I/O and SPI interface terminals
- Arduino® Uno compatible connector
- Windows® 10-compatible software
- USB-PC connection
- Proven PCB layout
- Fully assembled and tested
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Technical Specifications
| Kit Application Type | Interface |
|---|---|
| Silicon Manufacturer | Analog Devices |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
| Application Sub Type | IO-Link Transceiver |
|---|---|
| Silicon Core Number | MAX22514 |
| Kit Contents | Eval Kit MAX22514, USB A to Micro B Cable |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Philippines Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000001 |
