A000093

Development Board, Arduino Micro, ATmega32U4 MCU, 20 3.3V I/O, 12 Analogue Inputs, Without Headers

A000093 - Development Board, Arduino Micro, ATmega32U4 MCU, 20 3.3V I/O, 12 Analogue Inputs, Without Headers
A000093 - Development Board, Arduino Micro, ATmega32U4 MCU, 20 3.3V I/O, 12 Analogue Inputs, Without Headers

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
ARDUINO ARDUINO
Manufacturer Part No:
A000093
Order Code:
2285196
Also Known As:
GTIN UPC EAN: 8058333491301
Technical Datasheet:
A000093   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Atmel

:
8bit

:
ATmega

:
AVR

:
megaAVR

:
ATmega32U4

:
Development Board ATmega32U4 no headers

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Product Overview

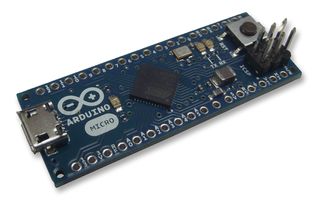

The A000093 is an Arduino Micro board without headers. This microcontroller board based on ATmega32u and developed in conjunction with Adafruit. It has 20 digital I/O pins (of which 7 can be used as PWM outputs and 12 as analogue inputs), 16MHz crystal oscillator, micro USB connection, ICSP header and a reset button. It contains everything needed to support the microcontroller, simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard. The Micro is similar to the Arduino Leonardo in that the ATmega32u4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial/COM port. It also has other implications for the behaviour of the board.
  • Onboard ATmega32u4 microcontroller with 32KB flash memory, 2.5KB SRAM and 1KB EEPROM
  • Support TWI and SPI communication
  • Board size is 48mm x 18mm
  • Micro USB connection
  • 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs)
  • Input voltage (recommended) range from 7V to 12V
  • Input Voltage (limit) range from 6V to 20V
  • 32KB flash memory of which 4KB used by bootloader
  • 2.5KB SRAM
  • 1KB EEPROM

Applications

Embedded Design & Development, Hobby & Education

Warnings

The recommended range is 7 to 12 volts, if using more than 12V the voltage regulator may overheat and damage the board.
