Print Page

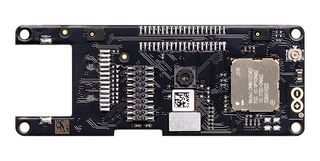

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | ARDUINO |
|---|---|
| Manufacturer Part No | ASX00026Copy |
| Manufacturer Standard Lead Time | 5 weeks |
| Order Code | 3677419 |
| Also Known As | GTIN UPC EAN: 7630049202870 |
| Your Part Number | |
| Technical Datasheet |
9 In Stock
Need more?
9 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM163.640 |
Price for:Each
Minimum: 1
Multiple: 1
RM163.64
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | ARDUINO |
|---|---|
| Manufacturer Part No | ASX00026Copy |
| Manufacturer Standard Lead Time | 5 weeks |
| Order Code | 3677419 |
| Also Known As | GTIN UPC EAN: 7630049202870 |
| Technical Datasheet | |
| Silicon Manufacturer | Murata, STMicroelectronics, Semtech |
| No. of Bits | - |
| Silicon Family Name | STM32 |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M0+ |
| Silicon Core Number | CMWX1ZZABZ-078, STM32L0, SX1276 |
| Kit Contents | Portenta Vision Shield - LoRa CMWX1ZZABZ-078, STM32L0, SX1276 |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview
Portenta vision shield LoRa® brings industry-rated features to your Arduino Portenta. This hardware add-on will let you run embedded computer vision applications, connect wirelessly via LoRa® to the Arduino Cloud or your own infrastructure, and activate your system upon the detection of sound events. The shield comes with a 320x320 pixels camera sensor, long range 868/915MHz LoRa wireless connectivity, two on-board microphones for directional sound detection, JTAG connector, SD-card connector.
- Himax HM-01B0 camera module
- 320 x 320 active pixel resolution with support for QVGA
- High sensitivity 3.6μ BrightSense™ pixel technology
- 2 x MP34DT05 microphone
- Dimension is 66mm x 25mm
Technical Specifications
| Silicon Manufacturer | Murata, STMicroelectronics, Semtech |
|---|---|
| Silicon Family Name | STM32 |
| Core Sub-Architecture | Cortex-M0+ |
| Kit Contents | Portenta Vision Shield - LoRa CMWX1ZZABZ-078, STM32L0, SX1276 |
| SVHC | No SVHC (27-Jun-2024) |
| No. of Bits | - |
|---|---|
| Core Architecture | ARM |
| Silicon Core Number | CMWX1ZZABZ-078, STM32L0, SX1276 |
| Product Range | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .009072 |
