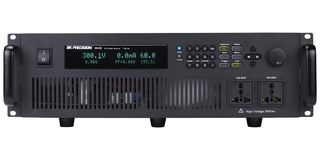

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | B&K PRECISION |
|---|---|
| Manufacturer Part No | BK9803BCopy |
| Order Code | 3890103 |
| Product Range | 9800B Series |
| Your Part Number | |
| Technical Datasheet |
No Longer Manufactured
Product Information
| Manufacturer | B&K PRECISION |
|---|---|
| Manufacturer Part No | BK9803BCopy |
| Order Code | 3890103 |
| Product Range | 9800B Series |
| Technical Datasheet | |
| Product Range | 9800B Series |
| Output Power Max | 750VA |
| Output Voltage Max | 300Vrms |
| Output Current Max | 6A |
| No. of Phases | Single Phase |
| Plug Type | - |
| SVHC | No SVHC (07-Nov-2024) |
Alternatives for BK9803B
1 Product Found
Product Overview
9800B series programmable AC power source and measurement tool. This is suitable for evaluating transformers, TRIACs, SCRs and passive components as well as production, R&D, service and pre-compliance testing applications.
- 0 to 300VRMS voltage, 750VA max power
- Output frequency adjustable from 45Hz to 500Hz
- Displays VRMS, IRMS, Ipeak, frequency, PF, apparent power, true power and elapsed output time
- Adjustable phase angle control
- Programmable voltage and frequency limit settings
- Built-in PLD and dimmer simulation, voltage and frequency sweep mode
- 10 user-defined programs with up to 100 programmable steps each
- BNC I/O for external triggering, output status indication/control and synchronization
- Save and recall up to 100 instrument settings
- OVP/OCP/OPP/OTP protection modes and key lock function
Contents
AC power source, Unterminated power cord with input connector, Rackmount ears & handles, Instruction manual, Test report, Certificate of calibration.
Technical Specifications
| Product Range | 9800B Series |
|---|---|
| Output Voltage Max | 300Vrms |
| No. of Phases | Single Phase |
| SVHC | No SVHC (07-Nov-2024) |
| Output Power Max | 750VA |
|---|---|
| Output Current Max | 6A |
| Plug Type | - |
Technical Docs (1)
Associated Products
7 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85044095 |
| US ECCN: | 3A992.a |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (07-Nov-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 44.5 |
