BTHQ21608VSS-STF-LED
Alphanumeric LCD, 16 x 2, Black on Yellow / Green, 5V, Parallel, English, Japanese, Transflective

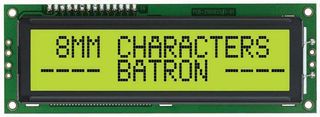

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBATRON
Manufacturer Part NoBTHQ21608VSS-STF-LED
Order Code9448772
Product RangeBTHQ21608VSS
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerBATRON
Manufacturer Part NoBTHQ21608VSS-STF-LED
Order Code9448772
Product RangeBTHQ21608VSS
Technical Datasheet
Character Count x Line16 x 2
Display AppearanceBlack on Yellow / Green
Logic Voltage5V
Interface TypeParallel
Font SetEnglish, Japanese
Display ModeTransflective
Character Size9.22mm
LCD Display TypeSTN
Module Size122mm x 43mm
Operating Temperature Min0°C
Operating Temperature Max50°C
Display ConstructionCOB
Backlighting ColourYellow / Green
Product RangeBTHQ21608VSS
Product Overview
The BTHQ21608VSS-STF-LED is a 16-character (5 x 8 dots) x 2 lines STN positive yellow transflective dot matrix LCD Module with 6 O'clock direction viewing angle and 1/l6 duty, 1/5 bias driving scheme. 'SITRONIX' ST7066U-OA (die form) LCD controller and driver or equivalent. 'SAMSUNG' KS0070BP-00CC (die form) LCD controller and driver or equivalent.
