BTHQ22005VSS-SRE
Alphanumeric LCD, 20 x 2, Black on Yellow / Green, 5V, Parallel, English, Japanese, Reflective

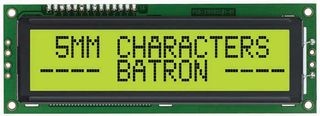

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBATRON
Manufacturer Part NoBTHQ22005VSS-SRE
Order Code9448705
Product RangeBTHQ22005VSS
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerBATRON
Manufacturer Part NoBTHQ22005VSS-SRE
Order Code9448705
Product RangeBTHQ22005VSS
Technical Datasheet
Character Count x Line20 x 2
Display AppearanceBlack on Yellow / Green
Logic Voltage5V
Interface TypeParallel
Font SetEnglish, Japanese
Display ModeReflective
Character Size5.55mm
LCD Display TypeSTN
Module Size116mm x 37mm
Operating Temperature Min0°C
Operating Temperature Max50°C
Display ConstructionCOB
Backlighting ColourNo Backlight
Product RangeBTHQ22005VSS
Product Overview
The BTHQ22005VSS-SRE is a 20-character (5 x 8 dots) x 2 lines STN positive yellow reflective dot matrix LCD Module with 6 O'clock direction viewing angle and 1/l6 duty, 1/5 bias driving scheme. SAMSUNG' KS0070BP-00CC (die form) LCD controller and driver or equivalent. 'SAMSUNG' KS0065B-PCC (die form) LCD segment driver or equivalent.
