99 0413 00 05
Circular Connector, IP67, Subminiature Circular Connector, 712 Series, Cable Mount Plug, 5 Contacts

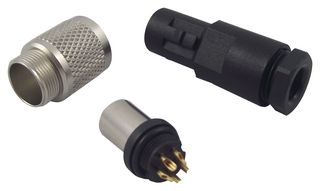

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | BINDER |
|---|---|
| Manufacturer Part No | 99 0413 00 05Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 1122553 |
| Product Range | 712 Series |
| Your Part Number | |
| Technical Datasheet |
551 In Stock
Need more?
209 Delivery in 1-2 Business Days(SG stock)
342 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM106.450 |
| 10+ | RM105.380 |
| 25+ | RM104.310 |
| 100+ | RM102.220 |
| 250+ | RM100.180 |
| 500+ | RM98.140 |
Price for:Each
Minimum: 1
Multiple: 1
RM106.45
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BINDER |
|---|---|
| Manufacturer Part No | 99 0413 00 05Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 1122553 |
| Product Range | 712 Series |
| Technical Datasheet | |
| Connector Type | Subminiature Circular Connector |
| Product Range | 712 Series |
| Circular Connector Shell Style | Cable Mount Plug |
| No. of Contacts | 5Contacts |
| Circular Connector Contact Type | Solder Pin |
| Coupling Style | - |
| Connector Body Material | Nylon (Polyamide) Body |
| Connector Body Plating | - |
| Contact Material | Brass |
| Contact Plating | Gold |
| IP Rating | IP67 |
| SVHC | Lead (25-Jun-2025) |
Product Overview
The 99 0413 00 05 from Binder is a subminiature circular cable plug connector with 5 pin contacts. This connector is easy to assemble and has M9 screw locking facility.
- Cable outlet diameter of 3.5mm to 5mm
- Solder termination
- Wire gauge size is 0.25mm² (24AWG)
- IP67 degree of protection
- Temperature range from -40°C to 85°C
- Rated voltage of 125V
- Rated current of 3A at 40°C
- Brass (CuZn) contacts with gold (Au) plating
- UL94 V-0 rated polybutylene terephthalate (PBT) contact body
- UL94 VH-B rated polyamides (PA) housing
Applications
Industrial
Technical Specifications
| Connector Type | Subminiature Circular Connector |
|---|---|
| Circular Connector Shell Style | Cable Mount Plug |
| Circular Connector Contact Type | Solder Pin |
| Connector Body Material | Nylon (Polyamide) Body |
| Contact Material | Brass |
| IP Rating | IP67 |
| Product Range | 712 Series |
|---|---|
| No. of Contacts | 5Contacts |
| Coupling Style | - |
| Connector Body Plating | - |
| Contact Plating | Gold |
| SVHC | Lead (25-Jun-2025) |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .008 |
