99-4222-00-04
Circular Connector, Miniature Circular Connector, 693 Series, Cable Mount Receptacle, 4 Contacts

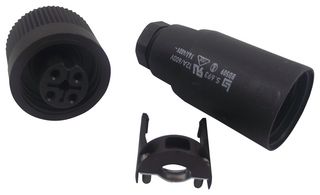

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | BINDER |
|---|---|
| Manufacturer Part No | 99-4222-00-04Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1778885 |
| Product Range | 693 Series |
| Your Part Number | |
| Technical Datasheet |
1,327 In Stock
Need more?
512 Delivery in 1-2 Business Days(SG stock)
815 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM80.590 |
| 10+ | RM78.980 |
| 25+ | RM77.370 |
| 100+ | RM75.760 |
| 250+ | RM74.150 |
| 500+ | RM72.540 |
Price for:Each
Minimum: 1
Multiple: 1
RM80.59
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BINDER |
|---|---|
| Manufacturer Part No | 99-4222-00-04Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1778885 |
| Product Range | 693 Series |
| Technical Datasheet | |
| Connector Type | Miniature Circular Connector |
| Product Range | 693 Series |
| Circular Connector Shell Style | Cable Mount Receptacle |
| No. of Contacts | 4Contacts |
| Circular Connector Contact Type | Screw Socket |
| Coupling Style | - |
| Connector Body Material | PBT (Polybutylene Terephthalate) Body |
| Connector Body Plating | - |
| Contact Material | Brass, Bronze |
| Contact Plating | Silver |
| IP Rating | IP67 |
| SVHC | Lead (25-Jun-2025) |
Product Overview
The 99-4222-00-04 is a 3 + PE female Circular Connector with cable strain relief, silver-plated contacts, PBT (UL94V-0) contact body and housing. Screw connector locking system.
- 600V Rated voltage
- 6000V Rated impulse voltage
- 16A (12A UL) Rated current
- ≤5mΩ Volume resistivity
- 0.5 to 2.5mm² Wire gauge
- <gt/>500-cycle Mechanical operation (mating)
- IP67 Protection rating
- -40 to 100°C Temperature range
Applications
Industrial
Technical Specifications
| Connector Type | Miniature Circular Connector |
|---|---|
| Circular Connector Shell Style | Cable Mount Receptacle |
| Circular Connector Contact Type | Screw Socket |
| Connector Body Material | PBT (Polybutylene Terephthalate) Body |
| Contact Material | Brass, Bronze |
| IP Rating | IP67 |
| Product Range | 693 Series |
|---|---|
| No. of Contacts | 4Contacts |
| Coupling Style | - |
| Connector Body Plating | - |
| Contact Plating | Silver |
| SVHC | Lead (25-Jun-2025) |
Technical Docs (1)
Associated Products
8 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .453592 |
