99 9105 00 03

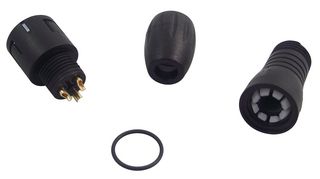

Circular Connector, Miniature Circular Connector, 720 Series, Cable Mount Plug, 3 Contacts
Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | BINDER |
|---|---|
| Manufacturer Part No | 99 9105 00 03Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1122468 |
| Product Range | 720 Series |
| Your Part Number | |
| Technical Datasheet |
260 In Stock
Need more?
260 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM47.520 |
| 10+ | RM46.090 |
| 100+ | RM44.660 |
| 250+ | RM43.680 |
| 500+ | RM42.750 |
| 1000+ | RM41.900 |
Price for:Each
Minimum: 1
Multiple: 1
RM47.52
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BINDER |
|---|---|
| Manufacturer Part No | 99 9105 00 03Copy |
| Manufacturer Standard Lead Time | 7 weeks |
| Order Code | 1122468 |
| Product Range | 720 Series |
| Technical Datasheet | |
| Connector Type | Miniature Circular Connector |
| Product Range | 720 Series |
| Circular Connector Shell Style | Cable Mount Plug |
| No. of Contacts | 3Contacts |
| Circular Connector Contact Type | Solder Pin |
| Coupling Style | - |
| Connector Body Material | Nylon (Polyamide) Body |
| Connector Body Plating | - |
| Contact Material | Brass |
| Contact Plating | Gold |
| IP Rating | IP67 |
| SVHC | Lead (25-Jun-2025) |
Product Overview
The 99 9105 00 03 is a 3-contact 250V/7A black unshielded straight miniature male Circular Connector with gold-plated brass contacts, PA (UL 94 V-0) contact body and PA (UL 94 V-0) housing. The 720 series plug with snap-in locking system, solder termination, cable mounting style. It accepts 20AWG (0.75mm²) wire, 4 to 6mm cable outlet.
- 2500V Rated impulse voltage
- ≤3mΩ Volume resistivity
- <gt/>500 mating cycles Mechanical operation
- IP67 Protection rating
Applications
Industrial
Technical Specifications
| Connector Type | Miniature Circular Connector |
|---|---|
| Circular Connector Shell Style | Cable Mount Plug |
| Circular Connector Contact Type | Solder Pin |
| Connector Body Material | Nylon (Polyamide) Body |
| Contact Material | Brass |
| IP Rating | IP67 |
| Product Range | 720 Series |
|---|---|
| No. of Contacts | 3Contacts |
| Coupling Style | - |
| Connector Body Plating | - |
| Contact Plating | Gold |
| SVHC | Lead (25-Jun-2025) |
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .01 |
