4610M-901-103LF
CAPACITOR NETWORK, 0.01UF

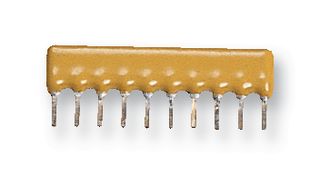

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBOURNS
Manufacturer Part No4610M-901-103LF
Order Code9357068
Product Range900 Series
Technical Datasheet
No Longer Stocked
Product Information
ManufacturerBOURNS
Manufacturer Part No4610M-901-103LF
Order Code9357068
Product Range900 Series
Technical Datasheet
Capacitance0.01µF
Capacitor Case / PackageSIP
Voltage(DC)50V
No. of Capacitors9Capacitors
Capacitor TerminalsPC Pin
Capacitance Tolerance± 20%
Capacitor MountingThrough Hole
Dielectric CharacteristicX7R
Product Length25.4mm
Product Width3.81mm
Operating Temperature Min-55°C
Operating Temperature Max125°C
Product Range900 Series
Qualification-
SVHCNo SVHC (07-Jul-2017)
Product Overview
The 4610M-901-103LF is a standard profile bussed Capacitor Network with radial leaded terminals. The 900 series 901 circuit capacitor is connected to a dual buss that connects pin 1 to the last pin. It is compatible with wave soldering. Body is made of epoxy/anhydride conformal.
- Design reduces termination noise
- 0.100" Lead spacing
Applications
Industrial
Technical Specifications
Capacitance
0.01µF
Voltage(DC)
50V
Capacitor Terminals
PC Pin
Capacitor Mounting
Through Hole
Product Length
25.4mm
Operating Temperature Min
-55°C
Product Range
900 Series
SVHC
No SVHC (07-Jul-2017)
Capacitor Case / Package
SIP
No. of Capacitors
9Capacitors
Capacitance Tolerance
± 20%
Dielectric Characteristic
X7R
Product Width
3.81mm
Operating Temperature Max
125°C
Qualification
-
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Japan
Country in which last significant manufacturing process was carried out
Tariff No:85322900
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (07-Jul-2017)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.068
