CFS206 32.768KDZB-UB
Crystal, CFS206, 32.768 kHz, 20 ppm, 6 pF

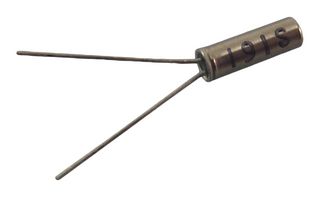

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | CITIZEN FINEDEVICE |
|---|---|
| Manufacturer Part No | CFS206 32.768KDZB-UBCopy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 1457085 |
| Product Range | CFS206 |
| Your Part Number | |
| Technical Datasheet |
37,756 In Stock
Need more?
340 Delivery in 1-2 Business Days(SG stock)
10,249 Delivery in 3-4 Business Days(UK stock)
27,167 Delivery in 4-5 Business Days(US stock)
| Quantity | Price |
|---|---|
| 1+ | RM0.905 |
| 10+ | RM0.817 |
| 100+ | RM0.788 |
| 500+ | RM0.773 |
| 1000+ | RM0.757 |
Price for:Each
Minimum: 5
Multiple: 5
RM4.52
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | CITIZEN FINEDEVICE |
|---|---|
| Manufacturer Part No | CFS206 32.768KDZB-UBCopy |
| Manufacturer Standard Lead Time | 13 weeks |
| Order Code | 1457085 |
| Product Range | CFS206 |
| Technical Datasheet | |
| Product Range | CFS206 |
| Frequency Nom | 32.768kHz |
| Crystal Frequency | 32.768kHz |
| Frequency Tolerance + / - | 20ppm |
| Frequency Stability + / - | - |
| Load Capacitance | 6pF |
| Crystal Case / Package | Cylinder Radial, 6.2mm x 2mm Dia |
| No. of Pins | 2Pins |
| Crystal Mounting | Through Hole |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 70°C |
| SVHC | To Be Advised |
Product Overview
The CFS206 32.768KDZB-UB is a 6.2 x 2mm Cylindrical Type Tuning Fork Crystal Unit. It is best suited for portable devices with low current consumption. Acts as a clock source in digital equipment.
- Ageing ±3ppm Per Year Max
- 35kΩ ESR
Applications
Portable Devices, Industrial
Technical Specifications
| Product Range | CFS206 |
|---|---|
| Crystal Frequency | 32.768kHz |
| Frequency Stability + / - | - |
| Crystal Case / Package | Cylinder Radial, 6.2mm x 2mm Dia |
| Crystal Mounting | Through Hole |
| Operating Temperature Max | 70°C |
| Frequency Nom | 32.768kHz |
|---|---|
| Frequency Tolerance + / - | 20ppm |
| Load Capacitance | 6pF |
| No. of Pins | 2Pins |
| Operating Temperature Min | -20°C |
| SVHC | To Be Advised |
Technical Docs (2)
Associated Products
3 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Philippines Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85416000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000059 |
