6-201
DRIVER BOARD, FOR LCD

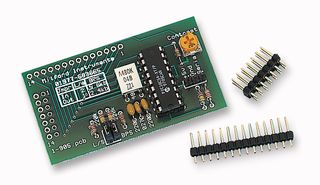

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | COMPLEMENTARY TECHNOLOGIES |
|---|---|
| Manufacturer Part No | 6-201Copy |
| Order Code | 1209612 |
| Your Part Number | |
| Technical Datasheet |
No Longer Stocked
Product Information
| Manufacturer | COMPLEMENTARY TECHNOLOGIES |
|---|---|
| Manufacturer Part No | 6-201Copy |
| Order Code | 1209612 |
| Technical Datasheet | |
| Kit Contents | Board |
| Product Range | - |
Product Overview
The 6-201 serial driver board is a daughterboard that attaches to LCD modules and converts the standard 4bit or 8bit parallel interface to a more easily managed serial interface at either 2,400baud or 9,600baud. It is compatible with all Hitachi 44780 controllers (or equivalents by OKI, Samsung etc) with up to 80 on screen characters. It is not suitable for 4x40 displays.
Applications
Lighting, LED Lighting
Technical Specifications
| Kit Contents | Board |
|---|
| Product Range | - |
|---|
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| RoHS Compliant: | To be advised |
| RoHS Phthalates Compliant: | To be advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .022 |
