| Manufacturer | DIALIGHT |
|---|---|
| Manufacturer Part No | 515-1022FCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 1138253 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price |
|---|---|
| 1+ | RM10.280 |
| 10+ | RM6.820 |
| 25+ | RM6.320 |
| 50+ | RM5.810 |
| 100+ | RM5.300 |
| 500+ | RM4.640 |
Product Information
| Manufacturer | DIALIGHT |
|---|---|
| Manufacturer Part No | 515-1022FCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 1138253 |
| Technical Datasheet | |
| Length | 31.24mm |
| No. of Light Pipes | 4Pipes |
| Light Pipe Shape | Rectangular |
| Mounting Orientation | 90° |
| Light Pipe Mounting | Press Fit |
| Light Pipe Colour | Transparent |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

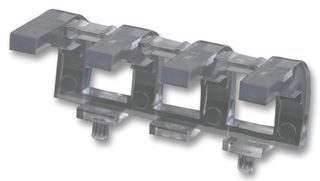

The 515-1022F is a 4-array (RJ45 jack) Optical Light Pipe made of water clear transmissive polycarbonate. Its rectangular light emitting surfaces appear bright and are optically well isolated. The light pipe is reliably held in place by 2 press-fit pins located between the 2 light pipe elements. This Optopipe® functions as a through-the-case indicator by conducting the light over the top of connectors or switches. A textured finish on the 4 light emitting surfaces maximizes the viewing angle. The recommended light sources are Dialight's 597 series 1210 type SMT LEDs. The LEDs are mounted in a straight line on a 0.55-inch pitch.
- Complements Dialight's 515-1070
- Allows indicators to be positioned above corresponding RJ45 jack or other components
- UL94-V0 Flammability rating
- ESD protection (circuit isolation from front panel)
- Wide viewing angle
- Secures to PCB by press-fit
- -30 to 100°C Operating temperature range
Applications
Industrial, Lighting
Technical Specifications
| Length | 31.24mm |
|---|---|
| Light Pipe Shape | Rectangular |
| Light Pipe Mounting | Press Fit |
| Product Range | - |
| No. of Light Pipes | 4Pipes |
|---|---|
| Mounting Orientation | 90° |
| Light Pipe Colour | Transparent |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Malaysia Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85319000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .005443 |
