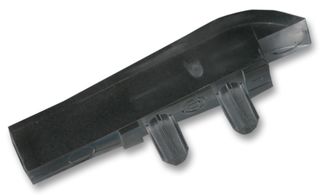

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | DIALIGHT |
|---|---|
| Manufacturer Part No | 515-1105FCopy |
| Manufacturer Standard Lead Time | 9 weeks |
| Order Code | 1138256 |
| Your Part Number | |
| Technical Datasheet |
1,484 In Stock
Need more?
1,484 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 5+ | RM6.290 |
| 10+ | RM4.590 |
| 100+ | RM3.320 |
| 500+ | RM2.930 |
| 1000+ | RM2.610 |
Price for:Each
Minimum: 5
Multiple: 5
RM31.45
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | DIALIGHT |
|---|---|
| Manufacturer Part No | 515-1105FCopy |
| Manufacturer Standard Lead Time | 9 weeks |
| Order Code | 1138256 |
| Technical Datasheet | |
| Length | 17.78mm |
| No. of Light Pipes | 1Pipes |
| Light Pipe Shape | Rectangular |
| Mounting Orientation | 90° |
| Light Pipe Mounting | Surface |
| Light Pipe Colour | Transparent |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
The 515-1105F is a single-element Light Pipe moulded in a clear transmissive polycarbonate. It is designed to be pressed into a 0.093-inch thick PC board.
Applications
Industrial, Lighting
Technical Specifications
| Length | 17.78mm |
|---|---|
| Light Pipe Shape | Rectangular |
| Light Pipe Mounting | Surface |
| Product Range | - |
| No. of Light Pipes | 1Pipes |
|---|---|
| Mounting Orientation | 90° |
| Light Pipe Colour | Transparent |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (3)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Malaysia Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90019000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00018 |
