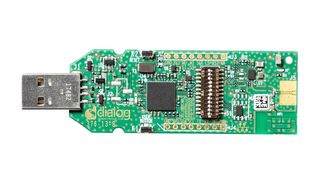

DA14531-00FXDEVKT-U
DEV KIT USB, BLUETOOTH LOW ENERGY, SOC
| Manufacturer | RENESAS |
|---|---|
| Manufacturer Part No | DA14531-00FXDEVKT-UCopy |
| Manufacturer Standard Lead Time | 38 weeks |
| Order Code | 3265422 |
| Your Part Number | |
| Technical Datasheet |
12 more incoming. You can reserve stock now
| Quantity | Price |
|---|---|
| 1+ | RM179.020 |
Product Information
| Manufacturer | RENESAS |
|---|---|
| Manufacturer Part No | DA14531-00FXDEVKT-UCopy |
| Manufacturer Standard Lead Time | 38 weeks |
| Order Code | 3265422 |
| Technical Datasheet | |
| Silicon Manufacturer | Dialog Semiconductor |
| Board Type | USB Development Kit |
| Silicon Core Number | DA14531 |
| IC Function | Bluetooth Low Energy System-on-Chip |
| Application Sub Type | Bluetooth Low Energy, SoC |
| Kit Contents | Dev Board USB DA14531 |
| Product Range | - |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview
DA14531-00FXDEVKT-U is a SmartBond TINY DA14531 Bluetooth low energy 5.1 System-on-Chip USB development kit. The DA14531 SmartBond TINY™ USB development kit gives you all the flexibility to develop applications in a small and portable form factor. This kit offers a low-cost development board with basic functionality. The development kit is implemented on a single PCB. The purpose of this cost-effective USB kit is to provide users with the capability for software development, programming the DA14531 via JTAG or UART using the DA14531 SDK, and connecting MikroBUS™ modules. The SmartBond TINY™, the world’s smallest and lowest power Bluetooth® 5.1 System-on-Chip (SoC), brings down the cost of adding Bluetooth Low Energy in any system and takes mobile connectivity to places previously out of reach, triggering a wave of a billion IoT devices, all with SmartBond TINY at the heart.
- User debugging a Dual-In-Line Package (DIP) switch
- Onboard 2-Mbit SPI data flash
- Onboard SEGGER chip gives you complete debugging capability
- One user LED
- One user button and one reset button
- Support for coin cell battery
- SmartSnippets™ Studio, to profile and fine-tune the power consumption of an application
Technical Specifications
| Silicon Manufacturer | Dialog Semiconductor |
|---|---|
| Silicon Core Number | DA14531 |
| Application Sub Type | Bluetooth Low Energy, SoC |
| Product Range | - |
| Board Type | USB Development Kit |
|---|---|
| IC Function | Bluetooth Low Energy System-on-Chip |
| Kit Contents | Dev Board USB DA14531 |
| SVHC | No SVHC (25-Jun-2025) |
Technical Docs (2)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | 5A992.c |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .102965 |
