471-032

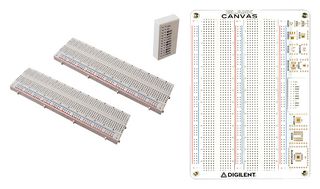

BLANK CANVAS WITH BREADBOARD
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | DIGILENT |
|---|---|
| Manufacturer Part No | 471-032Copy |
| Manufacturer Standard Lead Time | 4 weeks |
| Order Code | 3247721 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 4 week(s)
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM408.550 |
Price for:Each
Minimum: 1
Multiple: 1
RM408.55
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | DIGILENT |
|---|---|
| Manufacturer Part No | 471-032Copy |
| Manufacturer Standard Lead Time | 4 weeks |
| Order Code | 3247721 |
| Technical Datasheet | |
| Accessory Type | Blank Canvas with Breadboard |
| For Use With | Digilent Analog Discovery Studio |
| SVHC | No SVHC (21-Jan-2025) |
Product Overview
Blank Canvas provides a large prototyping surface for the Analog Discovery Studio and connections to the six power supplies (3.3V, 5V, ±12V, ± variable). The large prototyping surface has been wired in the configuration of two standard breadboards with 3 power rails. Eleven breakouts are provided at the top of the board for common IC package types.
- Features with two additional solder boards
Contents
Blank canvas, 2x12 power breadboard (not attached), Plastic canvas case, Regular‐sized breadboard with two power rails, Regular‐sized breadboard with one power rail.
Technical Specifications
| Accessory Type | Blank Canvas with Breadboard |
|---|---|
| SVHC | No SVHC (21-Jan-2025) |
| For Use With | Digilent Analog Discovery Studio |
|---|
Technical Docs (1)
Associated Products
7 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (21-Jan-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .34019 |
