115 In Stock
Need more?
26 Delivery in 3-4 Business Days(UK stock)
89 Delivery in 4-5 Business Days(US stock)
| Quantity | Price |
|---|---|
| 1+ | RM52.440 |
| 5+ | RM50.040 |
| 10+ | RM48.940 |
| 25+ | RM47.970 |
| 50+ | RM46.990 |
| 100+ | RM46.010 |
| 250+ | RM45.070 |
Price for:Each
Minimum: 1
Multiple: 1
RM52.44
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | EDAC |
|---|---|
| Manufacturer Part No | 307-044-520-202Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1704322 |
| Product Range | 307 |
| Technical Datasheet | |
| Card Edge Connector Type | Dual Side |
| Card Thickness | 1.57mm |
| No. of Contacts | 44 Contacts |
| Connector Mounting | Through Hole Mount |
| Connector Body Orientation | Straight |
| Contact Termination Type | Solder |
| Contact Material | Copper Alloy |
| Contact Plating - Mating Side | Gold Plated Contacts |
| Connector Body Material | Thermoplastic Polyester Body |
| Product Range | 307 |
| SVHC | No SVHC (25-Jun-2025) |
Product Overview

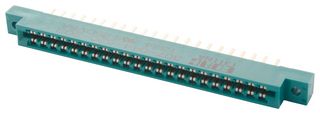

The 307-044-520-202 is a 44-way 2-row Standard Card Edge Connector, 0.156-inch (3.96mm) contact spacing and 0.200-inch (5.08mm) row spacing. Dual row contacts - read both sides of daughter board, PC tail contact termination. Copper alloy contacts with gold plating.
- Thermoplastic polyester (UL94V-0) insulator
- 5000MΩ Insulation resistance
Applications
Industrial
Technical Specifications
| Card Edge Connector Type | Dual Side |
|---|---|
| No. of Contacts | 44 Contacts |
| Connector Body Orientation | Straight |
| Contact Material | Copper Alloy |
| Connector Body Material | Thermoplastic Polyester Body |
| SVHC | No SVHC (25-Jun-2025) |
| Card Thickness | 1.57mm |
|---|---|
| Connector Mounting | Through Hole Mount |
| Contact Termination Type | Solder |
| Contact Plating - Mating Side | Gold Plated Contacts |
| Product Range | 307 |
Technical Docs (3)
Alternatives for 307-044-520-202
1 Product Found
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Canada Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (25-Jun-2025) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .014062 |
