516-120-000-301
Connector Housing, Grey, Actuating Screw & Polarizing Hardware, 516, Plug, 120 Ways, 3.81 mm
49 In Stock
125 more incoming. You can reserve stock now
13 Delivery in 1-2 Business Days(SG stock)
36 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM167.950 |
| 10+ | RM159.770 |
| 25+ | RM136.020 |
| 100+ | RM134.100 |
| 250+ | RM132.170 |
| 500+ | RM129.530 |
Price for:Each
Minimum: 1
Multiple: 1
RM167.95
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Overview

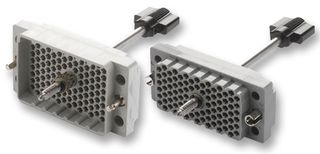

The 516-120-000-301 is a 120-position Plug Housing made of grey polycarbonate. It has actuating screw and polarizing hardware.
- UL94V-0 Flammability
- 10mΩ Contact resistance (maximum)
- 8A Current rating
- -65 to 125°C Operating temperature range
Applications
Industrial
Technical Specifications
Product Range
516
No. of Positions
120Ways
For Use With
516 Series Pin Contacts
Gender
Plug
Pitch Spacing
3.81mm
SVHC
No SVHC (25-Jun-2025)
Associated Products
8 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Canada
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Canada
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.004536
