2-5700-IG1-P10-DD-000040 25A
Thermal Circuit Breaker, 2-5700 Series, 25 A, 1 Pole, 28 V, 250 V, Panel

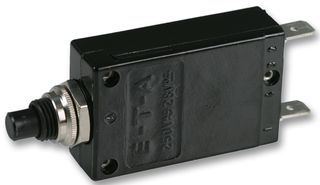

Image is for illustrative purposes only. Please refer to product description.
Available to Order
Notify me when back in stock
| Quantity | Price |
|---|---|
| 1+ | RM160.880 |
| 2+ | RM154.180 |
| 3+ | RM147.170 |
| 5+ | RM139.980 |
| 10+ | RM130.850 |
| 20+ | RM128.190 |
Price for:Each
Minimum: 1
Multiple: 1
RM160.88
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Overview
The 2-5700-IG1-P10-DD-000040 25A is a 1-pole 25A moulded thread-neck panel-mount Thermal Over-current Circuit Breaker with push to reset switch and blade terminal design. The 2-5700 series circuit breaker has trip-free operation, snap action mechanism and has breaking capacity of 2000A at 250VAC voltage.
- -20 to +60°C Ambient temperature range
- IP40 (operating area), IP00 (terminal area) Protection rating
Applications
Motor Drive & Control, Consumer Electronics, Power Management, Industrial
Technical Specifications
Current Rating
25A
Voltage Rating VDC
28V
Circuit Breaker Mounting
Panel
No. of Poles
1 Pole
Voltage Rating VAC
250V
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Tunisia
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Tunisia
Country in which last significant manufacturing process was carried out
Tariff No:85362010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.029
