F11107S090N085
Contact, Connector, Spring Probe, 1.5 A

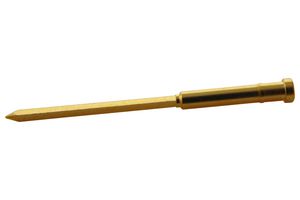

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | FEINMETALL |
|---|---|
| Manufacturer Part No | F11107S090N085Copy |
| Order Code | 1313686 |
| Product Range | F111 Series |
| Your Part Number | |
| Technical Datasheet |
No Longer Stocked
Product Information
| Manufacturer | FEINMETALL |
|---|---|
| Manufacturer Part No | F11107S090N085Copy |
| Order Code | 1313686 |
| Product Range | F111 Series |
| Technical Datasheet | |
| Connector Type | Spring Probe |
| Centreline Spacing | - |
| Connector Tip Style | - |
| Current Rating | 1.5A |
| Overall Length | - |
| Spring Force Initial | - |
| Spring Force Working Travel | - |
| Product Range | F111 Series |
| SVHC | No SVHC (17-Jan-2023) |
Product Overview
The F11107S090N085 is a spring contact Standard Probe with nickel-plated steel contacts, suitable for in-circuit and functional test (ICT/FCT). This F111 series probe is especially suited for testing loaded SMT boards. The projection height is identical to the spring contact probe F109 (40mil).
- 65mΩ Typical probe resistance
- 1.5A Maximum continuous current
Applications
Industrial, Test & Measurement
Technical Specifications
| Connector Type | Spring Probe |
|---|---|
| Connector Tip Style | - |
| Overall Length | - |
| Spring Force Working Travel | - |
| SVHC | No SVHC (17-Jan-2023) |
| Centreline Spacing | - |
|---|---|
| Current Rating | 1.5A |
| Spring Force Initial | - |
| Product Range | F111 Series |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Czech Republic Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (17-Jan-2023) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000032 |
