F62011S120L075
Contact, Connector, Spring Probe, 3 A

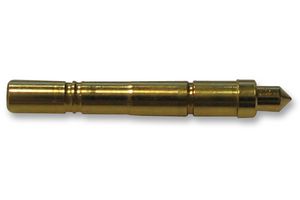

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | FEINMETALL |
|---|---|
| Manufacturer Part No | F62011S120L075Copy |
| Order Code | 1313726 |
| Product Range | F620 Series |
| Your Part Number | |
| Technical Datasheet |
No Longer Stocked
Product Information
| Manufacturer | FEINMETALL |
|---|---|
| Manufacturer Part No | F62011S120L075Copy |
| Order Code | 1313726 |
| Product Range | F620 Series |
| Technical Datasheet | |
| Connector Type | Spring Probe |
| Centreline Spacing | - |
| Connector Tip Style | - |
| Current Rating | 3A |
| Overall Length | - |
| Spring Force Initial | - |
| Spring Force Working Travel | - |
| Product Range | F620 Series |
| SVHC | No SVHC (17-Jan-2023) |
Product Overview
The F62011S120L075 is a spring contact Short Travel Probe with gold-plated steel contacts. This F620 series probe is suitable for all applications that require a low installation height. Due to its execution the pin can be soldered directly into the plate. The barrel is sealed with a ball, thus enabling the cable to be soldered into the probe.
- Gold-plated bronze barrel
- Silver-plated music wire spring
- 30mΩ Typical probe resistance
- 3A Maximum continuous current
Applications
Industrial, Test & Measurement
Technical Specifications
| Connector Type | Spring Probe |
|---|---|
| Connector Tip Style | - |
| Overall Length | - |
| Spring Force Working Travel | - |
| SVHC | No SVHC (17-Jan-2023) |
| Centreline Spacing | - |
|---|---|
| Current Rating | 3A |
| Spring Force Initial | - |
| Product Range | F620 Series |
Technical Docs (1)
Associated Products
3 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Czech Republic Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (17-Jan-2023) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000454 |
