F77206B200G300
Contact, Connector, Spring Probe, 5 A

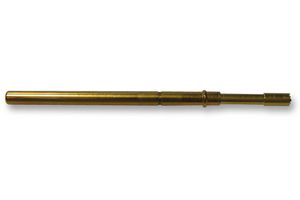

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | FEINMETALL |
|---|---|
| Manufacturer Part No | F77206B200G300Copy |
| Order Code | 1313718 |
| Product Range | F772 Series |
| Your Part Number | |
| Technical Datasheet |
No Longer Stocked
Product Information
| Manufacturer | FEINMETALL |
|---|---|
| Manufacturer Part No | F77206B200G300Copy |
| Order Code | 1313718 |
| Product Range | F772 Series |
| Technical Datasheet | |
| Connector Type | Spring Probe |
| Centreline Spacing | - |
| Connector Tip Style | - |
| Current Rating | 5A |
| Overall Length | - |
| Spring Force Initial | - |
| Spring Force Working Travel | - |
| Product Range | F772 Series |
| SVHC | No SVHC (17-Jan-2023) |
Product Overview
The F77206B200G300 is a spring contact Standard Probe with gold-plated beryllium copper contacts, suitable for in-circuit and functional test (ICT/FCT). This F772 series probe is used in dual-stage fixtures together with the F797 and it permits a variable projection height. It is used for used for a fixed projection height of 10mm and is identical to the threaded probe F732.
- Gold-plated nickel silver barrel
- Silver-plated music wire spring
- 25mΩ Typical probe resistance
- 16A Constant current
Applications
Industrial, Test & Measurement
Technical Specifications
| Connector Type | Spring Probe |
|---|---|
| Connector Tip Style | - |
| Overall Length | - |
| Spring Force Working Travel | - |
| SVHC | No SVHC (17-Jan-2023) |
| Centreline Spacing | - |
|---|---|
| Current Rating | 5A |
| Spring Force Initial | - |
| Product Range | F772 Series |
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Germany Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | To be advised |
| SVHC: | No SVHC (17-Jan-2023) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000381 |
