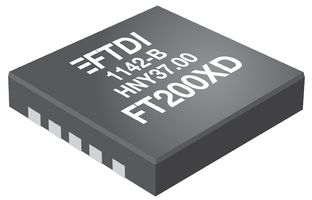

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | FTDI |
|---|---|
| Manufacturer Part No | FT200XD-RCopy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | Re-Reel2081320RL Cut Tape2081320 |
| Your Part Number | |
| Technical Datasheet |
102 In Stock
Need more?
102 Delivery in 3-4 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | RM10.830 | RM10.83 |
| Total Price | RM10.83 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | RM10.830 |
| 10+ | RM10.660 |
| 25+ | RM10.480 |
| 50+ | RM10.340 |
| 100+ | RM10.200 |
| 250+ | RM9.270 |
| 500+ | RM8.440 |
| 1000+ | RM8.280 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | FTDI |
|---|---|
| Manufacturer Part No | FT200XD-RCopy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | Re-Reel2081320RL Cut Tape2081320 |
| Technical Datasheet | |
| USB IC Type | USB-I2C Interface |
| USB Standard | USB 2.0 |
| Supply Voltage Min | 2.97V |
| Supply Voltage Max | 5.5V |
| IC Case / Package | DFN |
| No. of Pins | 10Pins |
| Data Rate | 3.4Mbps |
| No. of Ports | - |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Qualification | - |
| Product Range | - |
| MSL | MSL 3 - 168 hours |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
- Single chip USB to I²C interface
- Entire USB protocol handled on chip, no USB specific firmware programming required
- Fully integrated 2048-byte multi-time-programmable (MTP) memory
- Fully integrated clock generation with no external crystal required
- 512-byte receive buffer and 512-byte transmit buffer utilising buffer smoothing technology
- FTDI's royalty-free virtual com port (VCP) and direct (D2XX) drivers
- Configurable CBUS I/O pin, battery charger detection
- Device supplied pre-programmed with unique USB serial number
- Supports bus powered, self powered and high-power bus powered USB configurations
- Integrated +3.3V level converter for USB I/O
- True 3.3V CMOS drive output and TTL input
- Configurable I/O pin output drive strength
- Integrated power-on-reset circuit
- Internal 3.3V/1.8V LDO regulators
- Low operating current of 8mA (typical) and USB suspend current of 125μA (typical) current
- Low USB bandwidth consumption
- UHCI/OHCI/EHCI host controller compatible
- USB 2.0 full-speed compatible
- Extended operating temperature range from -40⁰C to +85⁰C
Warnings
ESD sensitive device, take proper precaution while handling the device.
Technical Specifications
| USB IC Type | USB-I2C Interface |
|---|---|
| Supply Voltage Min | 2.97V |
| IC Case / Package | DFN |
| Data Rate | 3.4Mbps |
| Operating Temperature Min | -40°C |
| Qualification | - |
| MSL | MSL 3 - 168 hours |
| USB Standard | USB 2.0 |
|---|---|
| Supply Voltage Max | 5.5V |
| No. of Pins | 10Pins |
| No. of Ports | - |
| Operating Temperature Max | 85°C |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85423990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .02 |
