Print Page

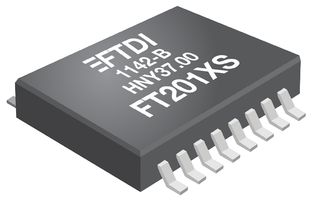

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | FTDI |
|---|---|
| Manufacturer Part No | FT201XS-RCopy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | Re-Reel2081323RL Cut Tape2081323 |
| Your Part Number | |
| Technical Datasheet |
2,519 In Stock
Need more?
2,519 Delivery in 3-4 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | RM9.340 | RM9.34 |
| Total Price | RM9.34 | ||
Cut Tape & Re-Reel
| Quantity | Price |
|---|---|
| 1+ | RM9.340 |
| 10+ | RM9.200 |
| 25+ | RM9.050 |
| 50+ | RM8.950 |
| 100+ | RM8.840 |
| 250+ | RM8.430 |
| 500+ | RM8.350 |
| 1000+ | RM8.190 |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | FTDI |
|---|---|
| Manufacturer Part No | FT201XS-RCopy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | Re-Reel2081323RL Cut Tape2081323 |
| Technical Datasheet | |
| USB IC Type | USB-I2C Interface |
| USB Standard | USB 2.0 |
| Supply Voltage Min | 2.97V |
| Supply Voltage Max | 5.5V |
| IC Case / Package | SSOP |
| No. of Pins | 16Pins |
| Data Rate | 3.4Mbps |
| No. of Ports | - |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Product Range | - |
| Qualification | - |
| MSL | MSL 3 - 168 hours |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview
FT201XS-R is an USB full-speed to I²C IC with USB charger detection. It offers a compact bridge to I²C devices. This device is an I²C, capable of operating up to 3.4MBit/s, with low power consumption (8mA). The FT201X includes the complete FT-X series feature set and enables USB to be added into a system design quickly and easily over an I2C interface.
- Single chip USB to IC interface, configurable CBUS I/O pin
- Entire USB protocol handled on the chip, no USB specific firmware programming required
- Device supplied pre-programmed with unique USB serial number
- Supports bus powered, self powered and high-power bus powered USB configurations
- Integrated +3.3V level converter for USB I/O, true 3.3V CMOS drive output and TTL input
- Configurable I/O pin output drive strength, integrated power-on-reset circuit
- Internal 3.3V/1.8V LDO regulators, low USB bandwidth consumption
- UHCI/OHCI/EHCI host controller compatible, USB 2.0 full speed compatible
- Ambient operating temperature range from -40°C to +85°C
- 16-pin SSOP package
Warnings
ESD sensitive device, take proper precaution while handling the device.
Technical Specifications
| USB IC Type | USB-I2C Interface |
|---|---|
| Supply Voltage Min | 2.97V |
| IC Case / Package | SSOP |
| Data Rate | 3.4Mbps |
| Operating Temperature Min | -40°C |
| Product Range | - |
| MSL | MSL 3 - 168 hours |
| USB Standard | USB 2.0 |
|---|---|
| Supply Voltage Max | 5.5V |
| No. of Pins | 16Pins |
| No. of Ports | - |
| Operating Temperature Max | 85°C |
| Qualification | - |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85423990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000454 |
