| Manufacturer | FTDI |
|---|---|
| Manufacturer Part No | FT240XS-RCopy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | Re-Reel2081332RL Cut Tape2081332 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | RM12.230 | RM12.23 |
| Total Price | RM12.23 | ||
| Quantity | Price |
|---|---|
| 1+ | RM12.230 |
| 10+ | RM11.010 |
| 25+ | RM10.350 |
| 50+ | RM9.620 |
| 100+ | RM8.970 |
| 250+ | RM8.640 |
| 500+ | RM8.510 |
Product Information
| Manufacturer | FTDI |
|---|---|
| Manufacturer Part No | FT240XS-RCopy |
| Manufacturer Standard Lead Time | 28 weeks |
| Order Code | Re-Reel2081332RL Cut Tape2081332 |
| Technical Datasheet | |
| USB IC Type | USB-FIFO |
| USB Standard | USB 2.0 |
| Supply Voltage Min | 2.97V |
| Supply Voltage Max | 5.5V |
| IC Case / Package | SSOP |
| No. of Pins | 24Pins |
| Data Rate | 1Mbps |
| No. of Ports | - |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Product Range | - |
| Qualification | - |
| MSL | MSL 3 - 168 hours |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

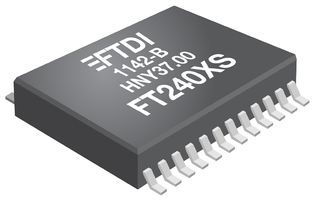

FT240XS-R is an USB full-speed to parallel FIFO interface with USB charger detection. This USB 2.0 full-speed IC offers a compact bridge to 8-bit wide FIFO interfaces. This device is a FIFO, capable of operating up to 1MByte/s, with low power consumption (8mA). The FT240X includes the complete FT-X series feature set and enables USB to be added into a system design quickly and easily over an 8-bit wide FIFO interface. Applications include upgrading legacy peripherals to USB cellular and cordless phone USB data transfer cables and interfaces, interfacing MCU/PLD/FPGA-based designs to USB, USB smart card readers, USB industrial control, USB FLASH card reader and writers, set-top box PC – USB interface, USB digital camera interface, USB instrumentation, dedicated charging port (DCP) detection enables battery charging at a higher current for faster charge times.
- Fully integrated 2048 byte MTP memory for storing device descriptors and CBUS I/O configuration
- Data transfer rates to 1MByte/s, configurable CBUS I/O pins
- Synchronous and asynchronous bit bang interface options with RD# and WR# strobes
- Device supplied pre-programmed with unique USB serial number
- Supports bus powered, self powered and high-power bus powered USB configurations
- Integrated +3.3V level converter for USB I/O, configurable I/O pin output drive strength
- Integrated power-on-reset circuit, low USB bandwidth consumption
- UHCI/OHCI/EHCI host controller compatible, USB 2.0 full speed compatible
- Ambient operating temperature range from -40°C to +85°C
- 24-pin SSOP package
Warnings
ESD sensitive device, take proper precaution while handling the device.
Technical Specifications
| USB IC Type | USB-FIFO |
|---|---|
| Supply Voltage Min | 2.97V |
| IC Case / Package | SSOP |
| Data Rate | 1Mbps |
| Operating Temperature Min | -40°C |
| Product Range | - |
| MSL | MSL 3 - 168 hours |
| USB Standard | USB 2.0 |
|---|---|
| Supply Voltage Max | 5.5V |
| No. of Pins | 24Pins |
| No. of Ports | - |
| Operating Temperature Max | 85°C |
| Qualification | - |
| SVHC | No SVHC (04-Feb-2026) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85423990 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .000508 |
