M80-4000000F1-08-325-00-000
Rectangular Connector, Datamate J-Tek M80, 8 Contacts, Receptacle, 4 mm, Crimp, 1 Row
Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | HARWIN |
|---|---|
| Manufacturer Part No | M80-4000000F1-08-325-00-000Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1895197 |
| Product Range | Datamate J-Tek M80 |
| Your Part Number | |
| Technical Datasheet |
86 In Stock
Need more?
86 Delivery in 3-4 Business Days(UK stock)
| Quantity | Price |
|---|---|
| 1+ | RM187.280 |
| 5+ | RM174.100 |
| 10+ | RM160.920 |
| 25+ | RM151.540 |
| 50+ | RM145.090 |
| 100+ | RM139.790 |
Price for:Each
Minimum: 1
Multiple: 1
RM187.28
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | HARWIN |
|---|---|
| Manufacturer Part No | M80-4000000F1-08-325-00-000Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1895197 |
| Product Range | Datamate J-Tek M80 |
| Technical Datasheet | |
| Product Range | Datamate J-Tek M80 |
| No. of Contacts | 8Contacts |
| Gender | Receptacle(View Associated Connectors) |
| Pitch Spacing | 4mm |
| Contact Termination Type | Crimp |
| No. of Rows | 1 Row |
| Connector Mounting | Panel Mount |
| Contact Plating | Gold Plated Contacts |
| Contact Material | Beryllium Copper |
| SVHC | Lead (04-Feb-2026) |
Product Overview
M80-4000000F1-08-325-00-000 is an 8-position, female SIL 12AWG cable connection kit.
- 4.00mm pitch high-reliability connector - Datamate Power
- Power solder contact suitable for 12 AWG, gold finish on contact area and termination
- Style of jackscrews: screw fixing (floating) with slotted head
- Straight connector orientation
- 8 number of power/coax contacts
- Operating temperature range from -55°C to +125°C
- 20A max per contact current rating
- PPS housing, brass base material of contact, black housing colour
- 4.00mm (0.157") contact pitch
- M2 thread size
Contents

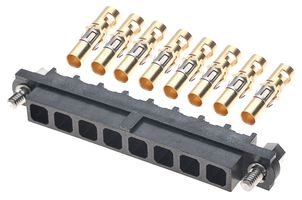

Housing (with hexagonal slotted jackscrews) with 8 x power contacts supplied loose.
Technical Specifications
| Product Range | Datamate J-Tek M80 |
|---|---|
| Gender | Receptacle |
| Contact Termination Type | Crimp |
| Connector Mounting | Panel Mount |
| Contact Material | Beryllium Copper |
| No. of Contacts | 8Contacts |
|---|---|
| Pitch Spacing | 4mm |
| No. of Rows | 1 Row |
| Contact Plating | Gold Plated Contacts |
| SVHC | Lead (04-Feb-2026) |
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85366930 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | Lead (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .00471 |
